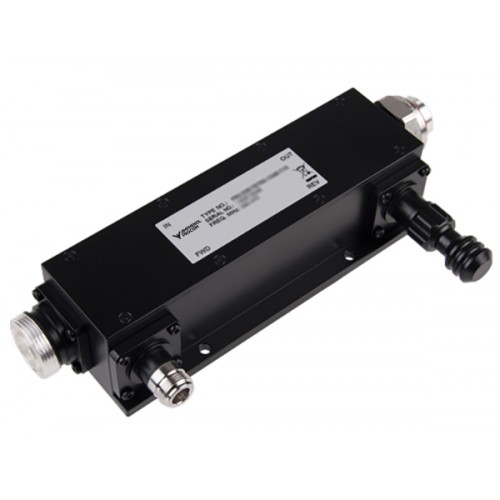

- 100 W Directional Coupler with 10, 20, or 30 dB coupling covering 380 - 520 MHz.
- Excellent high-power performance.
- Very low VSWR and insertion loss over the entire frequency range.
- Suitable for outdoor use (OD).
Description
Specifications
| Electrical | ||||
|---|---|---|---|---|
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||
|
||

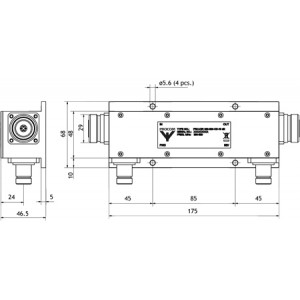

Diagram and Mounting
MOUNTING DETAILS
Ordering Designations
| Model | Product No. | Description | |
|---|---|---|---|
| PRO-DIR 380-520-OD-10 dB | 200002332 | COUPLING: 10 dB | |
| PRO-DIR 380-520-OD-20 dB | 210001661 | COUPLING: 20 dB | |
| PRO-DIR 380-520-OD-30 dB | 210001662 | COUPLING: 30 dB |
