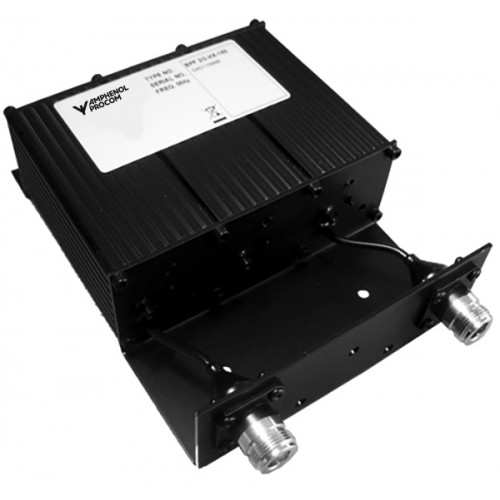

- The BPF 2/3-HX-150 is a medium Q helical band-pass filter with power-handling up to 100 W.
- The BPF 2/3-HX-150 can be used as a preselector to prevent overloading of a receiver.
- The housing is made of extruded aluminium, the chassis of steel, and teflon insulation has been used in the coaxial cables and in the connectors.
- BPF 2/3-HX-150 is coated with black vinyl to prevent corrosion.
Band Pass FiltersBPF 2/3-HX-150
Band-Pass Filter for the 2 m Band with High Power-Handling Capability (100 W)
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||
|
||
Ordering Designations
| Model | Product No. | |
|---|---|---|
| BPF 2/3-HX-150 N(f) | 200000821 |
Oredring Note
The BPF 2/3-HX-150 is delivered factory-tuned. Depending on the nature of the problem the band-pass filter has to solve, please specify the relevant of the following data when ordering:
Centre frequency, operating frequency of disturbed or disturbing transmitter, required attenuation at stop-frequency, tolerable insertion loss and, optionally: pass range bandwidth.

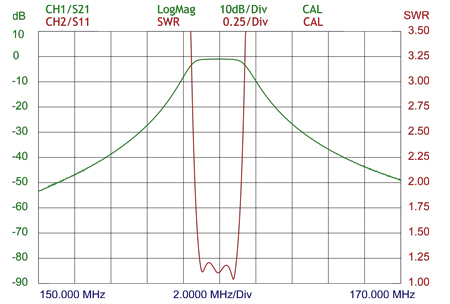

Typical response curve

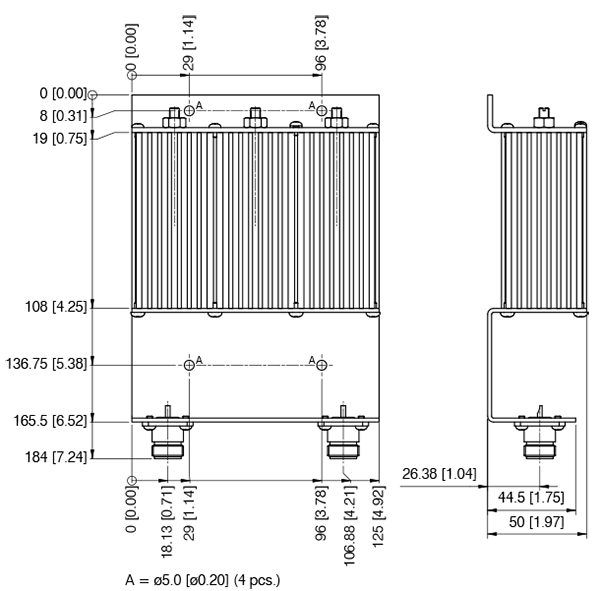

Mounting Details
All dimensions are given in mm [in.]
