PRO-RPS-4-N

Receiver MulticouplersPRO-RPS-4-N

4-Channel RX Power Splitter

Description

  • Low power, compact 4-channel power splitter/combiner.
  • The splitter covers the frequency range from 50–1000 MHz.
  • Almost no ripple in loss and isolation over the entire frequency range.

Specifications

Electrical
Model PRO-RPS-4-N
Frequency 50 - 1000 MHz
Max. Input Power 2 W
Insertion Loss < 1.5 dB (Above 6 dB)
Impedance 50 Ω
Isolation between outputs > 20 dB
VSWR < 1.3:1
No. of channels 4
Mechanical
Connection(s) N(f)
Dimensions 89 x 39 x 29 mm /
3.50 x 1.53 x 1.14 in.
Weight Approx. 0.2 kg / 0.44 lb.
Environmental
Operating temperature range -30 °C to +60 °C

Ordering Designations

Model Product No.
PRO-RPS-4-N 210000593

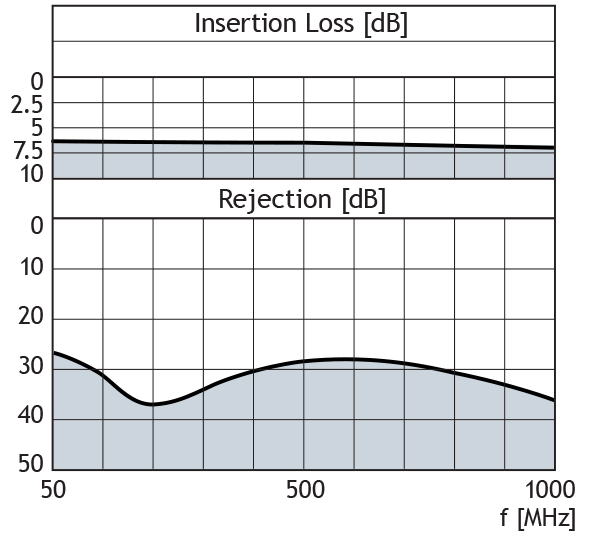

Typical Response curve

PRO RPS 4 N insloss GB
