PRO-RPS-4-GPS-N

Receiver MulticouplersPRO-RPS-4-GPS-N

4-channel Rx Power Splitter

Description

  • Passive receiver power splitter.
  • Large frequency range. 1500 MHz to 1650 MHz.
  • High isolation between outputs. > 20 dB.
  • To be used where RF-signals, special GPS-signals shall be divided or combined:
    • more receivers connected to the same coaxial cable
    • more GPS-antennas on the same coaxial cable
    • spectrum analyzer and GPS-receiver on the same coaxial cable.
  • N-female on all ports. (Other connector types on request).
  • Several options for DC-pass available (See ordering designation).

Specifications

Electrical
Model PRO-RPS-4-GPS-N
Frequency 1500 - 1650 MHz
Max. Input Power Max. 0.5 W each port
Insertion Loss 6.5 dB ± 0.5 dB
Input VSWR < 1.5:1 typ. < 1.3:1
Output VSWR Max. 1.5:1 typ. < 1.3:1
Isolation between outputs Min. 20 dB typ. ≥ 25 dB
DC Pass See ordering designation
No. of channels 4
Mechanical
Connection(s) N(f)
Dimensions 129 (incl. conn.) x 152 (incl. flanges) x 35 mm /
5.08 x 5.98 x 1.38 in.
Weight Approx. 0.28 kg / 0.62 lb.
Environmental
Operating temperature range -30 °C to +60 °C

Diagram and Mounting

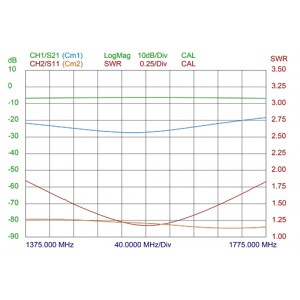

INSERTION LOSS & ISOLATION

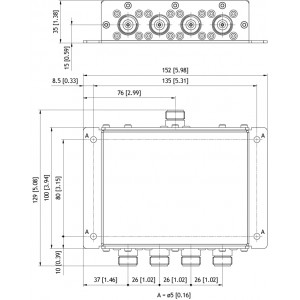

MOUNTING DETAILS (Dimensions excl. cover)

All dimensions are given in mm [in.] All dimensions are given in mm [in.]

Ordering Designations

Model Product No. Description
PRO-RPS-4-GPS-N 210000664 DC pass between all ports
PRO-RPS-4-GPS-N-1DC 210002231 DC pass between RX port 1 and ANT port
PRO-RPS-4-GPS-N-4DC 210003082 DC pass from all RX ports (4 ports) to ANT port, but no DC pass from ANT port to any of the RX ports and no DC pass between any of the RX ports
