Power Splitters and DividersPRO-MPHY450-2-.. dB-N-...

2-Channel Hybrid Ring Power Splitter/combiner for the 450 MHz band

Description

Combines two transmitters or receivers on the same antenna.
Better utilization of good antenna position.
The only combining option with very small Tx-Tx frequency spacing.
30 W load built-in.
Two antennas on the same transmitter or receiver.
Symmetrical 1:1 dividing ratio (-3 dB).
Can be delivered with asymmetrical dividing ratio, e.g. -6 dB and -10 dB.
Centre frequency to be arbitrary specified by the customer within 380 - 475 MHz.

Specifications

Electrical

Model

PRO-MPHY450-2-.. dB-N-...

Filter Type

Hybrid Junction

Frequency

To be stated within 380 and 475 MHz

Max. Input Power

30 W per channel when used as a power combiner.
60 W when used as a power divider.
Note : When used as a power combiner, extra cooling is necessary.
At 2 x 30 W the unit requires a heatsink with Rth = 3 °C/W.

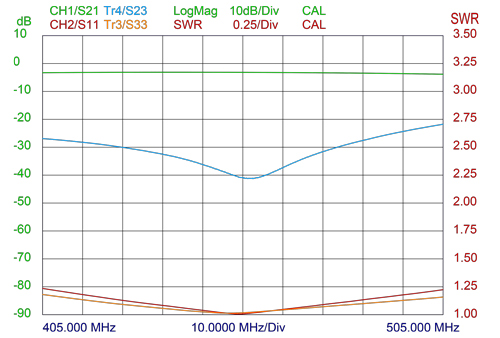

Insertion Loss

< 3.4 dB @ ± 5 MHz BW
< 3.7 dB @ ± 10 MHz BW

Impedance

50 Ω

Isolation

> 35 dB @ ± 5 MHz BW
> 30 dB @ ± 10 MHz BW
