- Low profile antenna for the 160 MHz band.
- XCPI 160/RHCP is a Right Hand Circularly Polarized antenna for indoor use e.g. ceilings and walls inside ships and houses.
- Circularly polarization is chosen to avoid out-of-phase signals.
- Reduces flutter considerably.
- Specially designed for closed rooms.
- Covers 144 - 175 MHz with a radiation of approx. 2 dBic.
- The antenna is carefully sealed with a discreet cover.
- The connector is placed at one side to enable mounting close to a wall or a ceiling.

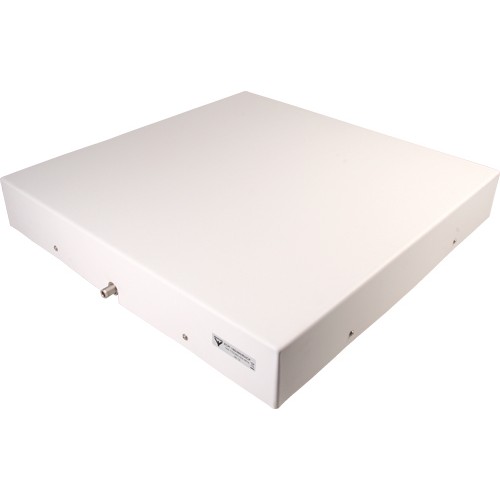

DAS AntennasXCPI 160/RHCP
Indoor Right Hand Circular Polarized Antenna for the 160 Mhz Band
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||
Diagram and Mounting

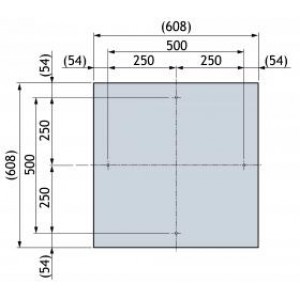

MOUNTING DETAILS (Dimensions excl. cover)

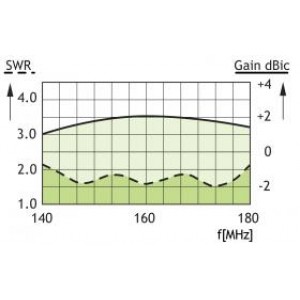

TYPICAL GAIN AND SWR CURVES

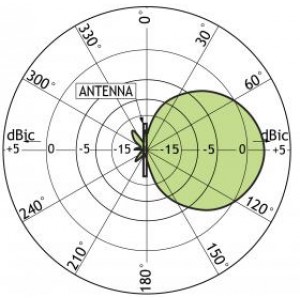

TYPICAL RADIATION PATTERN (E-PLANE)
This curve shows the radiation patterns in the vertical plane.
TYPICAL RADIATION PATTERN (H-PLANE)
This curve shows the radiation patterns in the horizontal plane (horizontal coverage).
Ordering Designations
| Model | Product No. | |
|---|---|---|
| XCPI 160/RHCP | 100000154 |
