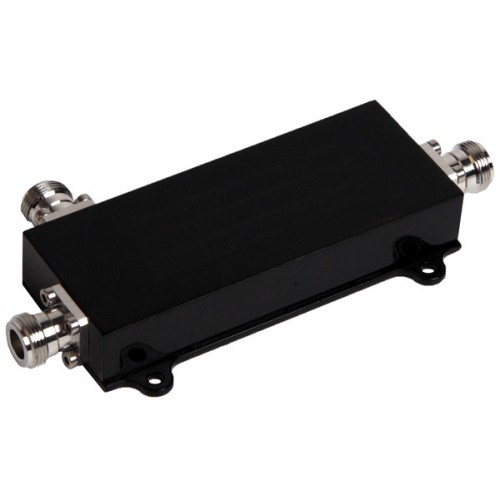

Directional CouplersADC-xx-WBM-LP-NF-CC

Directional Coupler 300 W

Description

  • Amphenol directional couplers are designed to give optimum performance between 698 - 2700 MHz.
  • Achieving  PIM @ -153 dBc, IP 65 rating, makes them ideal for indoor or outdoor environments.
  • Standard coupling values of 3, 6, 10, 15, 20, and 30 dB are available.
  • Connector configurations of N-Female.

Specifications

Electrical
Frequency 698 - 2700 MHz
Max. Input Power 300 W
Peak Input Power 1 kW
Coupling 3 dB 6 dB 10 dB 15 dB 20 dB 30 dB
Coupling Tolerance ± 0.8 dB ± 0.8 dB ± 1.0 dB ± 1.0 dB ± 1.0 dB ± 1.2 dB
Insertion Loss ≤ 3.6 dB ≤ 1.7 dB ≤ 0.7 dB ≤ 0.4 dB ≤ 0.3 dB ≤ 0.2 dB
Impedance 50 Ω
Application Indoor / Outdoor
Isolation ≥ 23 dB ≥ 26 dB ≥ 30 dB ≥ 35 dB ≥ 40 dB ≥ 50 dB
VSWR < 1.2:1
Passive Intermodulation < -153 dBc (2 x 43 dBm)
Dissipative Loss ≤ 0.2 dB ≤ 0.15 dB ≤ 0.1 dB ≤ 0.1 dB ≤ 0.1 dB ≤ 0.1 dB
Mechanical
Plating Silver / Trimetal
Connection(s) N(f)
Colour Black
Weight 0.47 kg / 1.04 lb
RoHS Compliant Yes
Mounting 4.5mm dia. (two holes)
Environmental
Operating Temperature Range -35°C to +70°C
Humidity < 95%
Ingress Protection IP65

Ordering Designations

Model Product No. Frequency
3dB Coupling ADC-03-WBM-LP-NF-CC 698 - 2700 MHz
6dB Coupling ADC-06-WBM-LP-NF-CC 698 - 2700 MHz
10dB Coupling ADC-10-WBM-LP-NF-CC 698 - 2700 MHz
15dB Coupling ADC-15-WBM-LP-NF-CC 698 - 2700 MHz
20dB Coupling ADC-20-WBM-LP-NF-CC 698 - 2700 MHz
30dB Coupling ADC-30-WBM-LP-NF-CC 698 - 2700 MHz

Additional Data

MOUNTING DETAILS

ADC-03-WBM-LP-NF-CC

ADC-06-WBM-LP-NF-CC



ADC-10-WBM-LP-NF-CC

ADC-15-WBM-LP-NF-CC

ADC-20-WBM-LP-NF-CC

ADC-30-WBM-LP-NF-CC

All dimensions are given in mm [in.]
