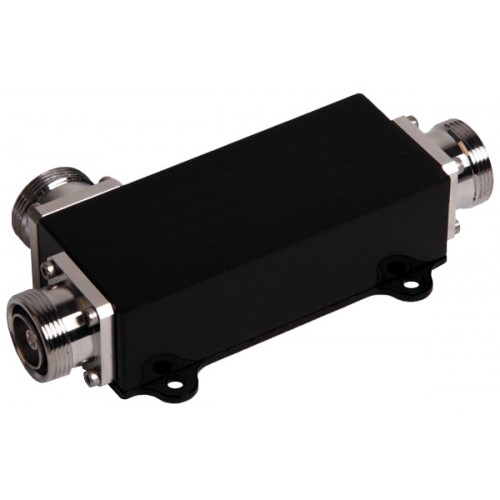

Directional CouplersADC-xx-WBM-LP-DF-CC

Directional Coupler 500 W

Description

Amphenol directional couplers are designed to give optimum performance between 698 - 2700 MHz.
Achieving PIM @ -153 dBc, IP 65 rating, makes them ideal for indoor or outdoor environments.
Standard coupling values of 3, 6, 10, 15, 20 and 30 dB are available.
Connector configurations of 7/16 DIN-Female.

Specifications

Electrical

Frequency

698 - 2700 MHz

Max. Input Power

500 W

Peak Input Power

1.5 kW

Coupling

3 dB

6 dB

10 dB

15 dB

20 dB

30 dB

Coupling Tolerance

± 0.8 dB

± 1.0 dB

± 1.2 dB

Insertion Loss

≤ 3.6 dB

≤ 1.7 dB

≤ 0.7 dB

≤ 0.4 dB

≤ 0.3 dB

≤ 0.2 dB

Impedance

50 Ω

Application

Indoor / Outdoor

Isolation

≥ 23 dB

≥ 26 dB

≥ 30 dB

≥ 35 dB

≥ 40 dB

≥ 50 dB

VSWR

< 1.2:1

Passive Intermodulation

< -153 dBc (2 x 43 dBm)

Dissipative Loss

≤ 0.2 dB

≤ 0.15 dB

≤ 0.1 dB

Mechanical

Plating

Silver / Trimetal

Connection(s)

7/16 DIN(f)

Colour

Black

Weight

0.75 kg / 1.65 lb

RoHS Compliant

Yes

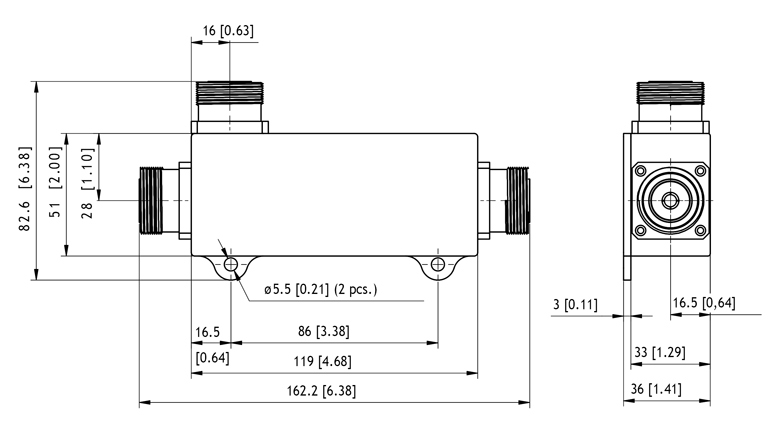

Mounting

5.5 mm dia. (two holes)

Environmental

Operating temperature range

-35 °C to +70 °C

Humidity

< 95%

Ingress Protection

IP65

Ordering Designations

Model	Product No.	Frequency
3 dB Coupling	ADC-03-WBM-LP-DF-CC	698 - 2700 MHz
6 dB Coupling	ADC-06-WBM-LP-DF-CC	698 - 2700 MHz
10 dB Coupling	ADC-10-WBM-LP-DF-CC	698 - 2700 MHz
15 dB Coupling	ADC-15-WBM-LP-DF-CC	698 - 2700 MHz
20 dB Coupling	ADC-20-WBM-LP-DF-CC	698 - 2700 MHz
30 dB Coupling	ADC-30-WBM-LP-DF-CC	698 - 2700 MHz
