5211460

DAS Antennas5211460

Indoor ceiling mount antenna, 450-470 MHz

Description

  • A wideband, discreet ceiling mounted omni antenna for use in DAS systems covering UHF PMR bands.
  • Supplied with screws for mounting.
  • Former Jaybeam brand product.

Specifications

Electrical
Model 5211460
Frequency 450 - 470 MHz
Max. Input Power 30 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain -0.1dBd / 2.1dBi
VSWR < 2.0:1
Passive Intermodulation -143dBc 2 x 40dBm (PIM value for N-type connector only applicable at date of manufacture)
In iBwave Yes
Mechanical
Connection(s) N(f) on 500mm RG303 (White) cable
Materials Reflector Plate - Aluminum
Radome Material / Colour ABS White
Dimensions ø202 x 70 mm /
ø7.95 x 2.75 in.
Weight Approx. 0.47 kg / 1.04 lb.
Mounting Screws supplied (3 holes in the base) for ceiling mounting

Diagram and Mounting

RADIATION PATTERNS

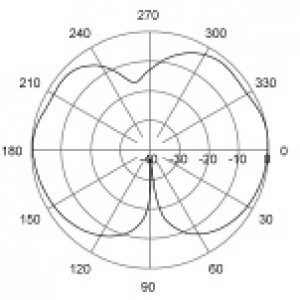

E-Plane | 460 MHz E-Plane | 460 MHz

RADIATION PATTERNS

H-Plane | 460 MHz H-Plane | 460 MHz

Ordering Designations

Model Product No. Frequency
Indoor ceiling mount antenna 5211460 450 - 470 MHz
