- Dual-band low-profile antenna for indoor use.
- Right hand circulary polarized, 7 dBic (5 dBi in each E- and H-plane) antenna specially designed for closed rooms. For use e.g. on ceilings and walls inside ships and buildings.
- Circular polarization is chosen to improve link quality.
- Built-in diplexers with low insertion loss make it possible to have only one connector.
LTE 4G/5G AntennasPCPI TETRA/LTE 800/RH
Indoor Right Hand Circularly Polarized Antenna for the TETRA and LTE Bands
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||

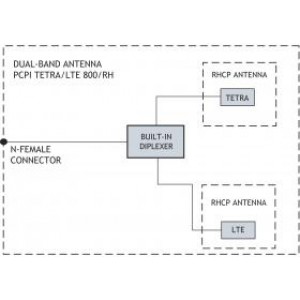

Diagram and Mounting

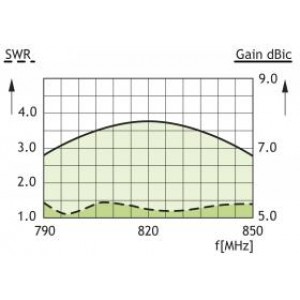

TYPICAL GAIN AND SWR CURVES

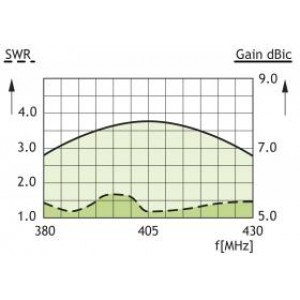

TYPICAL GAIN AND SWR CURVES
TYPICAL RADIATION PATTERN (E-PLANE)
This curve shows the radiation patterns in the vertical plane.
TYPICAL RADIATION PATTERN (H-PLANE)
MOUNTING & PATTERN

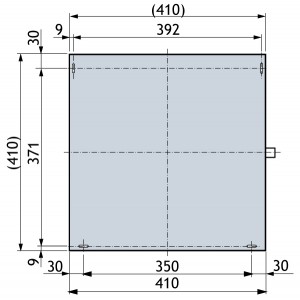

MOUNTING DETAILS (Dimensions excl. cover)
This curve shows the radiation patterns in the horizontal plane (horizontal coverage). Ordering Designations
| Model | Product No. | |
|---|---|---|
| PCPI TETRA/LTE 800/RH | 100000522 |
