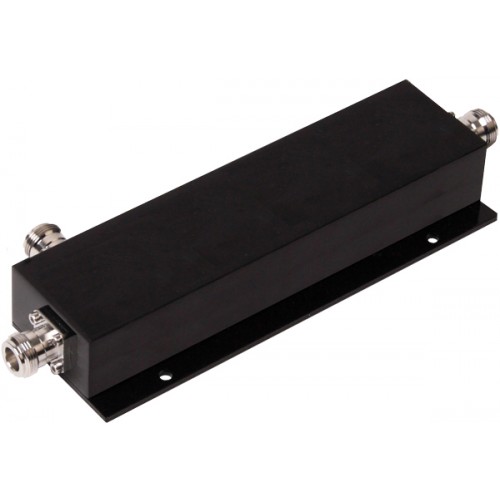

Directional CouplersADC-xx-WBS-LP-43F-CC

Directional Coupler 400 W

Description

Amphenol directional couplers are designed to give optimum performance between 380 - 2700 MHz.
Achieving PIM @ -153 dBc, IP 65 rating, makes them ideal for indoor or outdoor environments.
Standard coupling values of 3, 6, 10, 15, 20, and 30 dB are available.
Connector configurations of 4.3-10-Female.

Specifications

Electrical

Frequency

380 - 2700 MHz

Max. Input Power

400 W

Peak Input Power

1.3 kW

Coupling

3 dB

6 dB

10 dB

15 dB

20 dB

30 dB

Coupling Tolerance

± 1.2 dB

Insertion Loss

≤ 3.6 dB

≤ 1.7 dB

≤ 0.7 dB

≤ 0.4 dB

≤ 0.3 dB

≤ 0.2 dB

Impedance

50 Ω

Application

Indoor / Outdoor

Isolation

≥ 23 dB

≥ 26 dB

≥ 30 dB

≥ 35 dB

≥ 40 dB

≥ 50 dB

VSWR

< 1.25:1

Passive Intermodulation

< -153 dBc (2 x 43 dBm)

Dissipative Loss

≤ 0.2 dB

≤ 0.15 dB

≤ 0.1 dB

Mechanical

Plating

Silver / Trimetal

Connection(s)

4.3/10(f)

Colour

Black

Weight

0.66 kg / 1.46 lb

RoHS Compliant

Yes

Mounting

4.5 mm dia. (two holes)

Environmental

Operating temperature range

-35 °C to +70 °C

Humidity

< 95%

Ingress Protection

IP65

Ordering Designations

Model	Product No.	Frequency
3 dB Coupling	ADC-03-WBS-LP-43F-CC	380 - 2700 MHz
6 dB Coupling	ADC-06-WBS-LP-43F-CC	380 - 2700 MHz
10 dB Coupling	ADC-10-WBS-LP-43F-CC	380 - 2700 MHz
15 dB Coupling	ADC-15-WBS-LP-43F-CC	380 - 2700 MHz
20 dB Coupling	ADC-20-WBS-LP-43F-CC	380 - 2700 MHz
30 dB Coupling	ADC-30-WBS-LP-43F-CC	380 - 2700 MHz
