DAS Antennas5052400

Multi Band Ceiling Mount Omni, 695-960 / 1710-6000 MHz

Description

A wideband, discreet ceiling mounted omni antenna for use in DAS systems covering 2G/3G/4G and 5G cellular bands.
Supplied with screws for ceiling mounting or a bracket for wall mounting.
Former Jaybeam brand product.

Specifications

Electrical

Model

5052400

Frequency

695 - 960 MHz

1710 - 6000 MHz

Max. Input Power

50 W

Polarisation

Vertical

3 dB Beamwidth, E-Plane

60 °

3 dB Beamwidth, H-Plane

Omnidirectional

Gain

-0.1dBd / 2.1dBi

2.8 dBd / 5 dBi

VSWR	< 2.5:1 (Full Band) < 1.8:1 (806-960 & 1710-2500 MHz)

Passive Intermodulation

-153dBc (3rd Order, 2 x Tx@ 40dBm)
PIM value for N-Type only applicable at date of manufacture

In iBwave

Yes

Mechanical

Connection(s)

N-Type (f), 4.1/9.5 Mini-DIN(f) or 7/16 DIN(f) 0.3 m (11.8 in) RG303 Cable / Rear

Radiator Material

PCB

Radome Material / Colour

UV Stable ABS White

Dimensions

250 x 117 mm / 9.8 x 4.6 in.

Weight

Approx. 0.35 kg / 0.77 lb.

Mounting

Screws supplied (3 holes in the base) for ceiling mounting

Back Plate Material

Aluminium

Diagram and Mounting

RADIATION PATTERNS

H-Plane

RADIATION PATTERNS

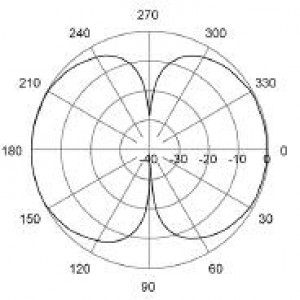

E-Plane | 900 MHz

RADIATION PATTERNS

E-Plane | 1800 MHz

RADIATION PATTERNS

E-Plane | 1900 MHz

RADIATION PATTERNS

E-Plane | 2100 MHz

Ordering Designations

Model	Product No.	Description	Frequency
Antenna with Mounting Screws
Multi Band Ceiling Mount Omni	5052400	Antenna with N-Type Connector	695-960 MHz / 1710-6000 MHz
Multi Band Ceiling Mount Omni	5052400-DIN	Antenna with 7/16-DIN Connector	695-960 MHz / 1710-6000 MHz
Multi Band Ceiling Mount Omni	5052400-mDIN	Antenna with 4.1/9.5 Mini-DIN Connector	695-960 MHz / 1710-6000 MHz
Antenna with Mounting Kit #21210000 (L-Bracket)
Multi Band Ceiling Mount Omni	5052400L	Antenna with N-Type Connector & L Bracket	695-960 MHz / 1710-6000 MHz
Multi Band Ceiling Mount Omni	5052400L-DIN	Antenna with 7/16-DIN Connector & L Bracket	695-960 MHz / 1710-6000 MHz
Multi Band Ceiling Mount Omni	5052400L-mDIN	Antenna with 4.1/9.5 Mini-DIN Connector & L Bracket	695-960 MHz / 1710-6000 MHz
