- End-fed half-wave dipole with a black-chromed, conical stainless steel whip.
- 3 dB gain (typ.) compared to a ¼ λ portable antenna whip on the same equipment.
- Groundplane independent due to half-wave design.
- Delivered factory tuned to /l, /m or /h band. See ordering designations.
- Provided with TNC(m) connector.
Handportable AntennasEFD 2R/...-TNC
3 dB Portable Dipole Antenna for the 160 MHz Band
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
Diagrams

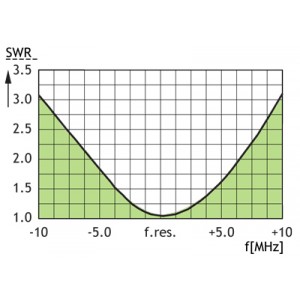

TYPICAL SWR CURVES
TYPICAL RADIATION PATTERN (E-PLANE)
Ordering Designations
| Model | Product No. | Frequency | |
|---|---|---|---|
| EFD 2R/l-TNC | 140000088 | 144 - 160 MHz | |
| EFD 2R/m-TNC | 140000089 | 155 - 170 MHz | |
| EFD 2R/h-TNC | 140000090 | 160 - 175 MHz |
