Directional Coupler 100 W

Description

100 W Directional Coupler with broadband characteristics covering the cellular service bands.
Excellent high power performance.
Very low VSWR and insertion loss over the entire frequency range.

Electrical

Model

PRO-DIR 0.8-2.5G- 10 dB-100 W

PRO-DIR 0.8-2.5G- 20 dB-100 W

PRO-DIR 0.8-2.5G- 30 dB-100 W

Frequency

0.8 - 2.5 GHz

Max. Input Power

100 W

Coupling

10 dB ±1 dB

20 dB ±1 dB

30 dB ±1 dB

Impedance

50 Ω

Input VSWR

< 1.2:1

Nominal Divider Loss

0.1 dB

0.01 dB

0.001 dB

Total Loss

< 0.6 dB

< 0.3 dB

Mechanical

Connection(s)

N(f)

Dimensions

170 x 45 x 19 mm / 6.69 x 1.77 x 0.75 in.

Weight

Approx. 0.211 kg / 0.47 lb.

Environmental

Operating temperature range

-30 °C to +60 °C

Ingress Protection

IP64

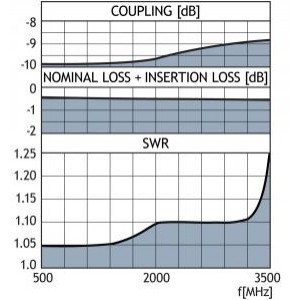

TYPICAL RESPONSE CURVE 10 dB
