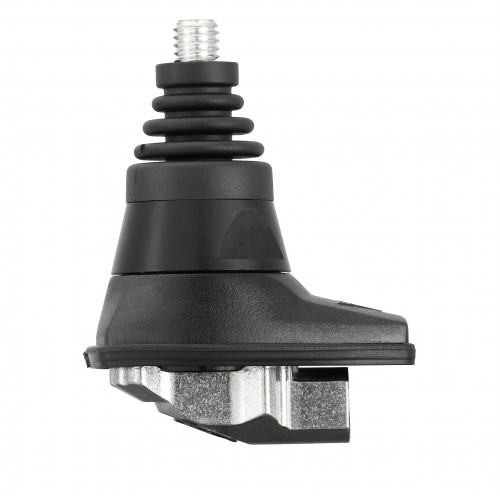

- Mobile mount with a nice, “streamline”-look, which can be installed everywhere on the car in an 18 mm dia. hole.
- Especially suited for mounting on the narrow strip on rear wing between trunk lid and car side.
- M6 thread whip-mounting system.
- Very low requirements to installation depth both under and after installation.
- Designed for installation with access from the outside only.
- With access available from the inside, installation is possible in a 14 mm dia. hole.
- Bendable section in mount makes whip tiltable 30° by hand.
- Complete line of whips available for all communications bands up to 1300 MHz.
- Mounting body made of stainless steel !
- Choice between two connection principles:
- X-mount: FME-connection (supplied without cable).
- XP4-mount: Permanently attached 4 m cable terminated with FME-connector.
- ECE R118.02 approved cable.
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
Ordering Designations
| Model | Product No. | Description | |
|---|---|---|---|
| X-Mount | 130000373 | X-mount with FME-system | |
| XP4-Mount | 130000374 | XP4-mount with 4 m cable and FME-connector | |
| XP5-Mount | 130000375 | XP5-mount with 5 m cable and FME-connector | |
| Accessories FME-Cables | |||
| 1 m FME(f) to FME(f) cable | 130000437 | ||
| 2 m FME(f) to FME(f) cable | 130000447 | ||
| 3 m FME(f) to FME(f) cable | 130000457 | ||
| 4 m FME(f) to FME(f) cable | 130000466 | ||
| 5 m FME(f) to FME(f) cable | 130000474 | ||
| 6 m FME(f) to FME(f) cable | 130000483 | ||
| 4 m FME(f) to FME(f) cable, white | 110000064 | ||
| 6 m FME(f) to FME(f) cable, white | 110000066 | ||
| 12 m FME(f) to FME(f) cable, white | 110000068 | ||
| 18 m FME(f) to FME(f) cable, white | 110000069 | ||
| Accessories FME-Connectors | |||
| FME(f)-FME(f) Connector Adaptor | 130000583 | ||
| FME(m)-P(m) (Prolongation) Connector Adaptor | 130000565 | ||
| FME(m)-N(m) Connector Adaptor | 130000571 | ||
| FME(m)-SMA(f) Connector Adaptor | 130000578 | ||
| FME(m)-BNC(m) Connector Adaptor | 130000566 | ||
| FME(m)-TNC(m) Connector Adaptor | 130000569 | ||
| FME(m)-UHF(m) Connector Adaptor | 130000572 | ||
| FME(m)-MiniUHF(m) Connector Adaptor | 130000573 | ||
| FME(m)-MiniUHF(m)(Elbow) Connector Adaptor | 130000582 | ||
| FME(m)-BNC(m)(Elbow) Connector Adaptor | 130000580 | ||
| FME(m)-TNC(m)(Elbow) Connector Adaptor | 130000581 | ||
| FME(m)-SMA(m) Connector Adaptor | 130000577 | ||
FME-System Accessories - Note
For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

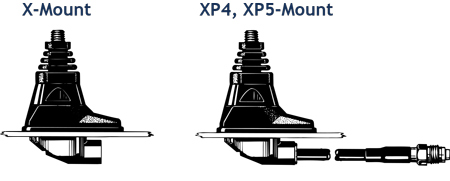

Mount Variant
A Selection of the various whips which can be connected to the X-Mount
INSTALLATION
X-mount antenna types can be mounted anywhere on the car, however, roof top mounting is always recommended.
The X-mount is able to be mounted on the often very narrow strip on the rear wing between the trunk lid and the side of the car.
Mounting can take place exclusively with access from the outside when drilling an 18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole, in which case the bottom plastic ring of the packing gasket should be removed with a sharp cutter.
A good contact surface on the inside of the car body must always be ensured, thus enabling the base plate to get in direct contact with the metal parts of the car, which is of utmost importance for proper performance of the antenna.
When cleaning the car in car-washing machines, the whip is easily removed using a fork spanner. The whip is refitted again by screwing it onto the thread stud and tightening it lightly with the spanner.
As the X-mount is internally equipped with a bendable section, the antennas can always be adjusted to an upright position independent of the tilt angle of the installation spot (up to 30° tilt).
1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
Dimensions
