PRO-DIPX 520/790-2700-LP

Diplex FiltersPRO-DIPX 520/790-2700-LP

100 W Low PIM Diplexer for the 80 - 520 MHz and 790 - 2700 MHz ranges

Description

  • Diplexer for combining or splitting the two ranges 80 – 520 MHz and 790 – 2700 MHz.
  • IP 67 rated for both indoor and outdoor use.
  • Superior PIM performance.
  • Low PIM
  • Very low insertion loss.
  • Wide temperature range.
  • N-female or 7/16 DIN-female connectors on all ports.
  • Coated with 2-component lacquer for maximum weather protection.

Specifications

Electrical
Model PRO-DIPX 520/790-2700-LP
Frequency LOW port : 80 - 520 MHz
HIGH port : 790 - 2700 MHz
Max. Input Power 100 W CW simultaneously on both LOW and HIGH port
Insertion Loss 80 - 520 MHz : 0.4 dB, typ. <0.2dB
698 - 790 MHz : 0.8 dB, typ. <0.5dB
790 - 2700 MHz : 0.4 dB, typ. <0.2dB
Impedance 50 Ω
Isolation Low-High Port 80 - 520 MHz : 50 dB, typ. 65 dB
698 - 790 MHz : 40 dB, typ. 47 dB
790 - 2700MHz : 50 dB, typ. 75 dB
VSWR 80 - 520 MHz : 1.5:1 (RL > 14 dB)
698 - 790 MHz : 1.9:1 (RL > 10 dB)
790 - 2700MHz : 1.5:1 (RL > 14 dB)
Passive Intermodulation < -150 dBc (2 x 43 dBm)
Mechanical
Connection(s) 7/16 DIN(f) or N(f)
Dimensions 273.3 x 177 x 36 mm /
10.76 x 6.97 x 1.42 in. (incl. connectors and flanges)
Weight Approx. 0.8 kg / 1.76 lb.
Mounting 4.3 mm dia. (4 holes)
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP67

Diagram and Mounting

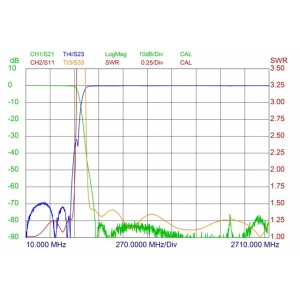

TYPICAL RESPONSE CURVES

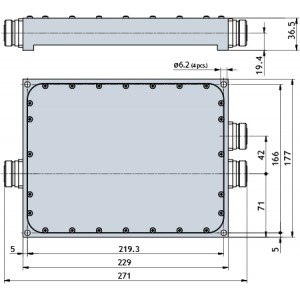

MOUNTING DETAILS

Ordering Designations

Model Product No.
PRO-DIPX 520/790-2700-LP-N(f) 200002618
PRO-DIPX 520/790-2700-LP-7/16(f) 200002619
