- High power base station band-pass/band-reject filters for the 140 – 175 MHz range.
- The use of large ø125 mm cavities means a high Q, resulting in a very narrow pass/reject spacing.
- The large dimensions also mean a high power rating.
- Unloaded Q of a single cavity is approx. 4500.
- High frequency stability on temperature and power.
- Mounted on 19” brackets.**

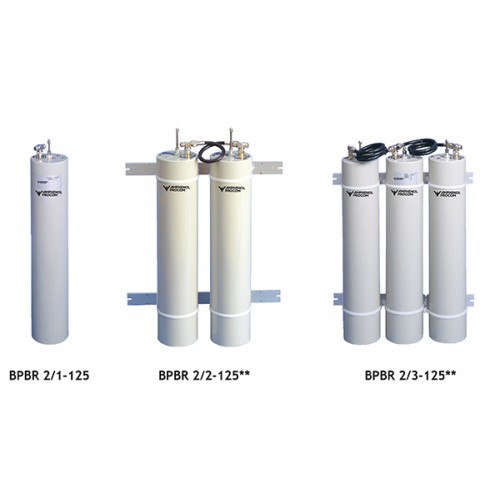

Pass/Reject FiltersBPBR 2/...-125
Band-Pass/Band-Reject Filters for the 150 MHz Band
Description
Specifications
| Electrical | ||||
|---|---|---|---|---|
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
| Mechanical | ||||
|---|---|---|---|---|
|
||||
|
||||
|
||||
| Environmental | ||||
|---|---|---|---|---|
|
||||
|
||||
Ordering Designations
| Model | Product No. | |
|---|---|---|
| BPBR 2/1-125 | 200001081 | |
| BPBR 2/2-125 | 200000959 | |
| BPBR 2/3-125 | 200001909 |
Mounting Note
Other cavity mounting options available:
//amphenolprocom.com/images/PDF/Cavity_Mounting_Options.pdf
Typical Respons Curves

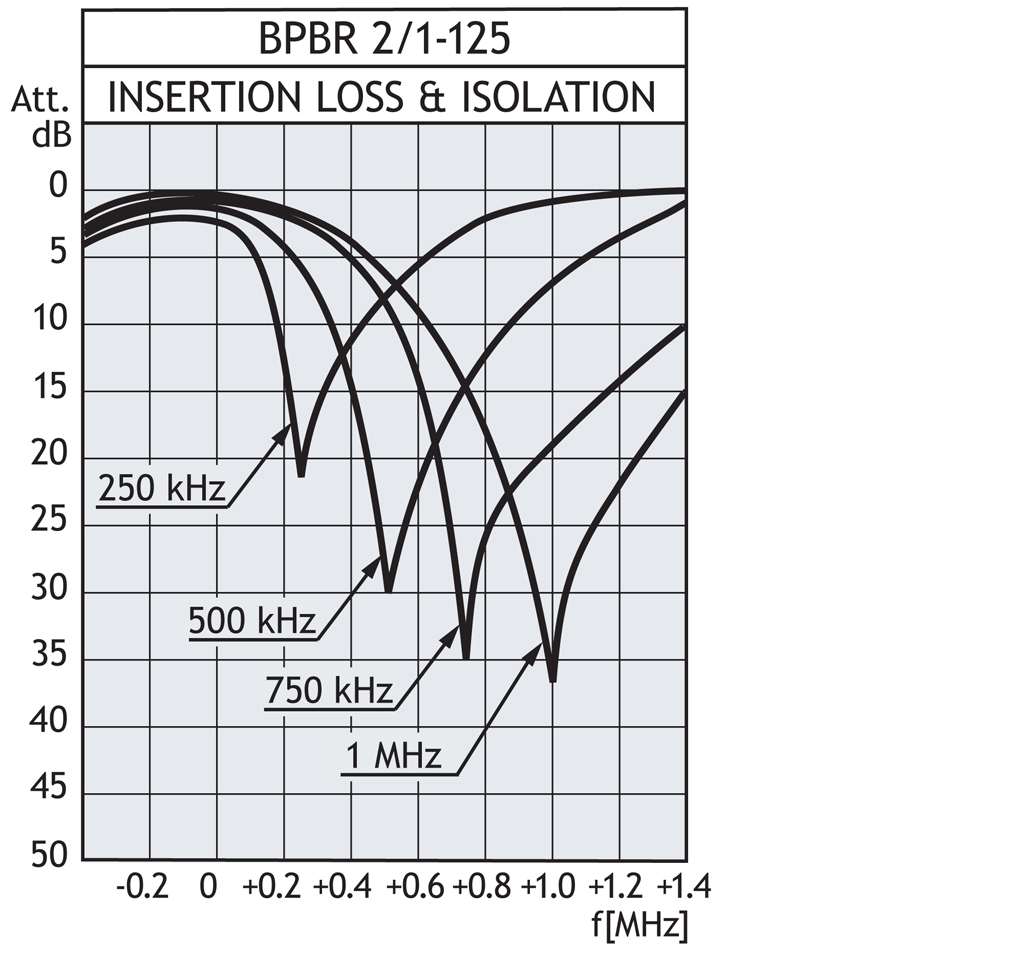

Figure 1

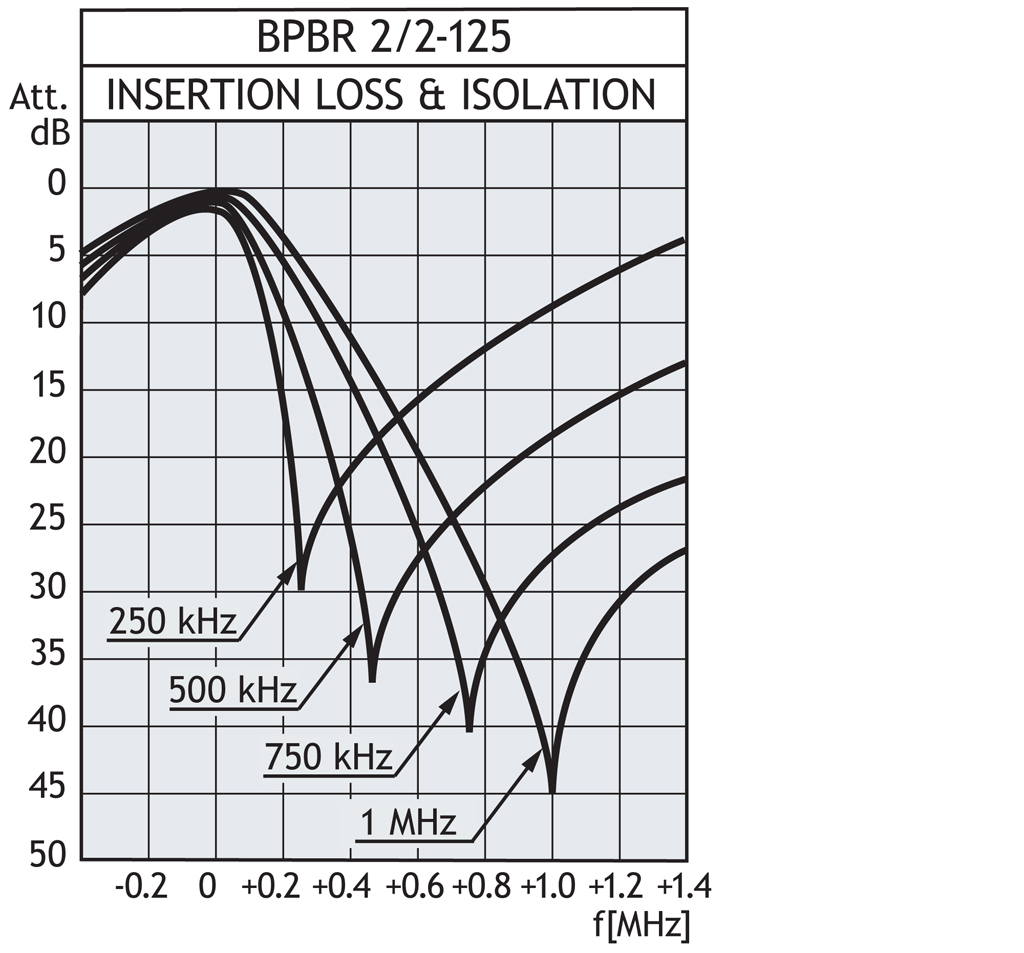

Figure 2

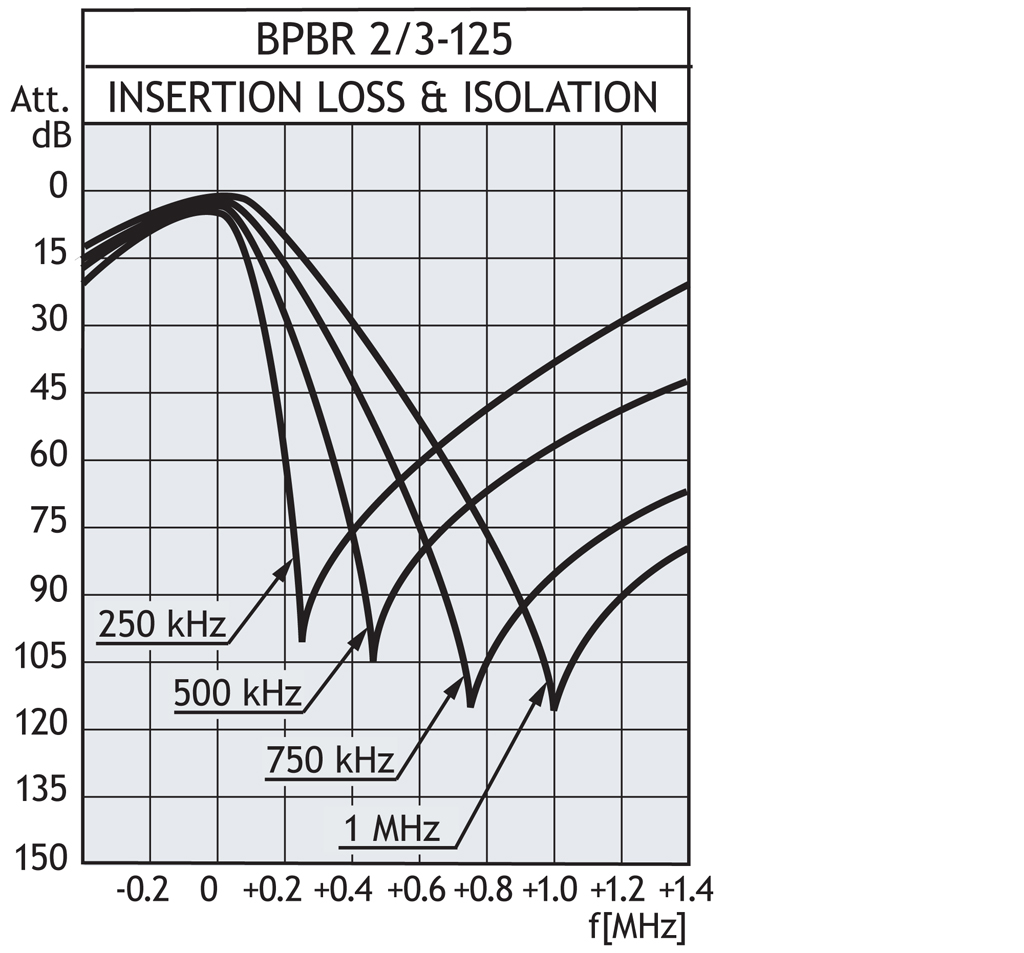

Figure 3
