DPF 70/55 380-EXT

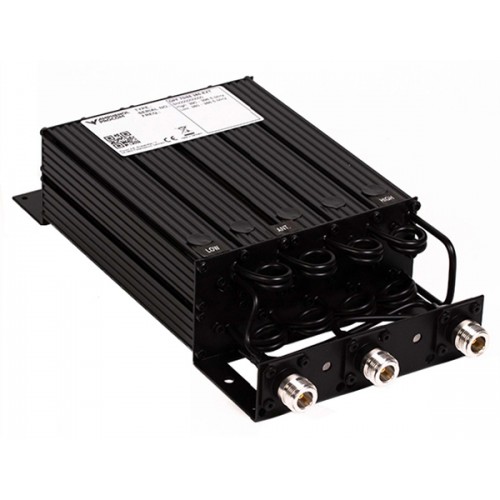

Duplex FiltersDPF 70/55 380-EXT

Duplex Filter for the extended TETRA band Low 380 - 386.5 MHz & High 390 - 396.5 MHz

Description

  • The DPF 70/55 380-EXT is developed for the Public Safety TETRA extended network. Bandwidth 2 x 6.5 MHz
  • The filter uses 2 x 5 resonators ¼ λ in a compact, extruded aluminium cavity housing.
  • The chassis is made of passivated steel and teflon insulation has been applied in the coaxial cables and in the connectors.
  • The filter is coated with black vinyl to prevent corrosion.

Specifications

Electrical
Model DPF 70/55 380-EXT
Frequency 380 - 386.5 MHz / 390 - 396.5 MHz
Max. Input Power 50 W
Pass Band Insertion Loss < 2.0 dB
Impedance 50 Ω
VSWR < 1.5:1
Stop Band Attenuation > 60 dB
Mechanical
Connection(s) N(f)
Dimensions 247 x 129 x 58 mm /
9.72 x 5.08 x 2.28 in. (excl. conn.)
Weight Approx. 1.6 kg / 3.53 lb.
Environmental
Operating temperature range -30 °C to +60 °C

Ordering Designations

Model Product No. Frequency
DPF 70/55 380-EXT-N 200002892 380 - 386.5 MHz / 390 - 396.5 MHz

Typical response curves

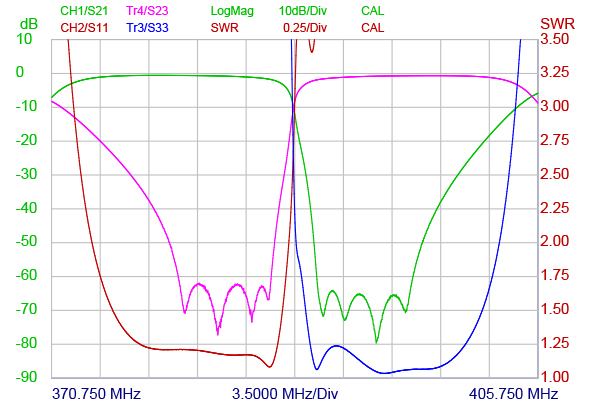

DPF 70!55 380 EXT VSWR

Mounting Details

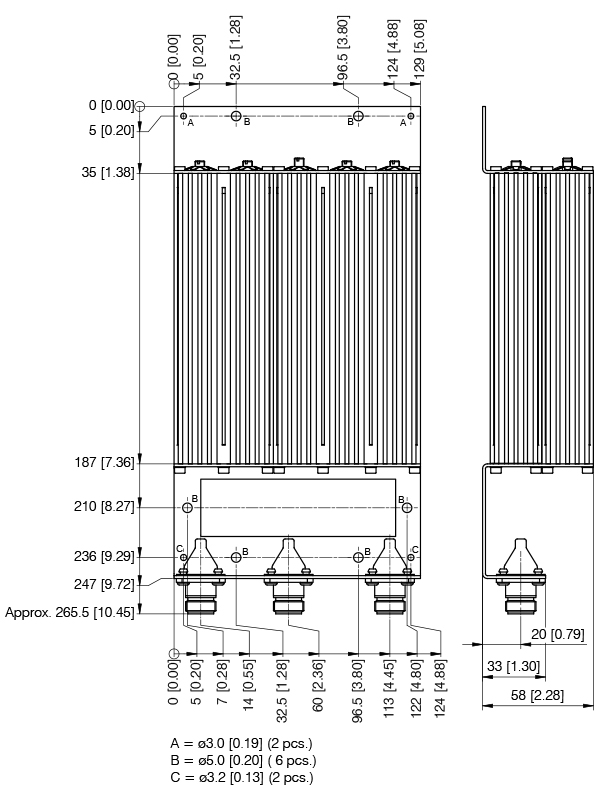

DPF 70!55 380 EXT Holeplacing

All dimensions are given in mm [in.]
