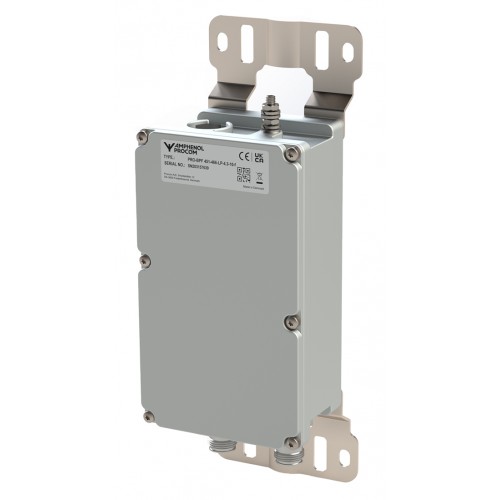

Band-Pass Filter for the LTE band 451 - 466 MHz

Description

Interference originating from DVB-T transmitters can often lead to saturation of LTE450 receivers disrupting communication reception and reducing radio coverage. The new mast mountable bandpass filter, PRO-BPF 451-466-LP is designed to suppress high power signals, effectively mitigating interference, and elevating the performance of LTE450 communications. Covering LTE bands 31 and 72. Key Features:
  • PRO-BPF 451-466-LP (Low Pim) is a robust high performance UHF 450 MHz band-pass filter for mounting e.g. in base station masts.
  • It is highly used for protecting the recieving side of a LTE radio system or other DMR systems from high power out of band interference occuring from e.g. DVB-T systems or others.
  • PRO-BPF 451-466-LP is PIM rated to -150 dBc @ 2 x 20 W (2 x 43 dBm).
  • The Band-Pass Filter is built into a IP67 proof enclosure for wall mounting or it can be mounted on masts or pylones. See the Mechanical designation.
  • Covers LTE450 band 31 and 72 (451 - 466 MHz)
  • Mast mountable – brackets and metal strips included for mounting.

Specifications

Electrical
Model PRO-BPF 451-466-LP
Frequency 451 - 466 MHz
Max. Input Power 50 W
Insertion Loss ≤ 1.0 dB
Impedance 50 Ω
Reject Attenuation ≤ 40 dB@ 400 - 430 MHz
≤ 40 dB@ 470 - 695 MHz
VSWR < 1.3:1 (Return Loss ≤ 18 dB)
Bandwidth 15 MHz
Passive Intermodulation ≤ -150 dBc (@ 2 x 20 W)
Mechanical
Connection(s) 4.3-10(f)
Colour Light Grey
Dimensions 312 x 110 x 97 mm /
12.28 x 4.33 x 3.82 in.
Weight Approx. 2.2 kg / 4.85 lb.
Mounting Bracket Stainless Steel bracket wall mounted or mounted on poles ø50 - ø90 mm
Environmental
Operating temperature range -30 °C to +60 °C
Temp. drift ± 0.5 MHz
Ingress Protection IP 67

Ordering Designations

Model Product No. Description
PRO-BPF 451-466-LP-4.3-10 (f) 200002953 Low PIM Band-Pass Filter

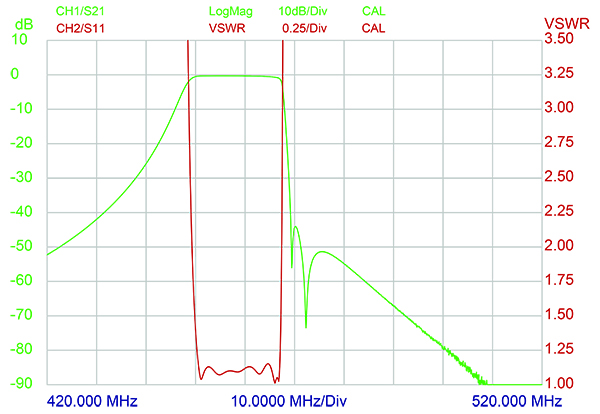

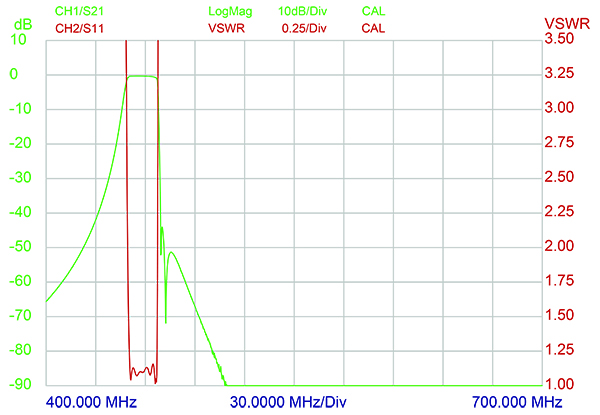

Typical Response curves

PRO BPF451 466 LP VSWR 1

PRO BPF451 466 LP VSWR 2

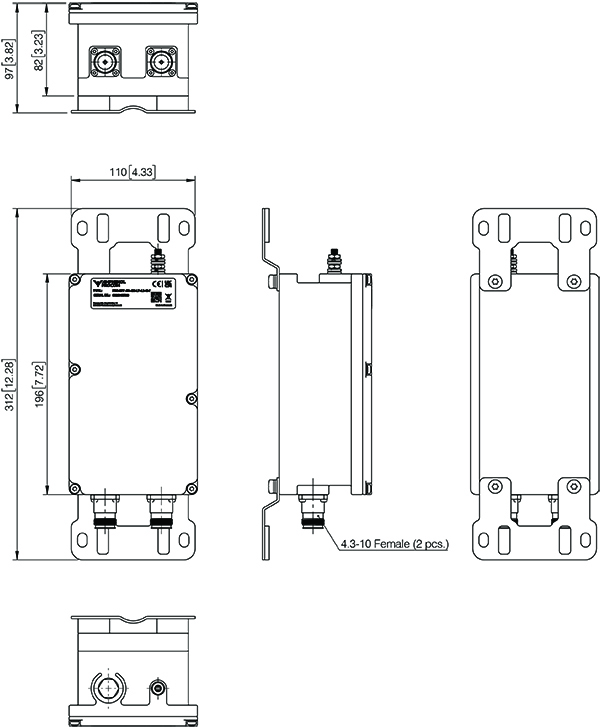

Outline Drawing

PRO BPF451 466 LP Mounting details

All dimensions are given in mm [in.]
