- The DPBP 70/3333-TETRA-N-... is a 2 x 6 resonator band-pass duplex filter designed to combine TETRA Tx and Rx to one common feeder.
- The filter uses reduced-length ¼ λ cavities in a compact, strong aluminium housing. Teflon insulation has been applied in the coaxial cables and in the connectors.
- 19” drawers available as options.
- Built-in DC stop between all ports (Open circuit).
Duplex FiltersDPBP 70/3333-TETRA-N-...
12-Resonator Band-Pass Duplex Filter for TETRA Band
Description

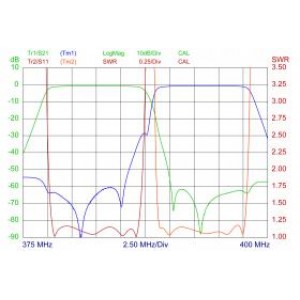

Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||

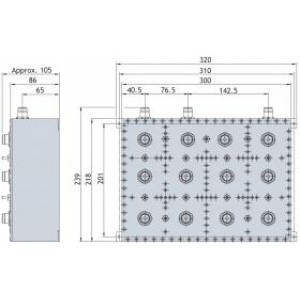

![All dimensions are given in mm [in.]](https://amphenolprocom.com/images/shop/cache/catalog/procomproducts/filters/GB/DPBP-70!3333-20-TETRA-Holeplacing-GB-300x300.jpg "Mounting Details")
All dimensions are given in mm [in.] Ordering Designations
| Model | Product No. | Frequency | |
|---|---|---|---|
| DPBP 70/3333-TETRA-N-1 | 200000655 | 380 - 385 MHz / 390 - 395 MHz | |
| DPBP 70/3333-TETRA-N-2 | 200001806 | 385 - 390 MHz / 395 - 400 MHz | |
| DPBP 70/3333-TETRA-N-3 | 200001807 | 410 - 415 MHz / 420 - 425 MHz | |
| DPBP 70/3333-TETRA-N-4 | 200001808 | 415 - 420 MHz / 425 - 430 MHz | |
| DPBP 70/3333-TETRA-N-5 | 200001809 | 450 - 455 MHz / 460 - 465 MHz | |
| DPBP 70/3333-TETRA-N-6 | 200001810 | 455 - 460 MHz / 465 - 470 MHz |
