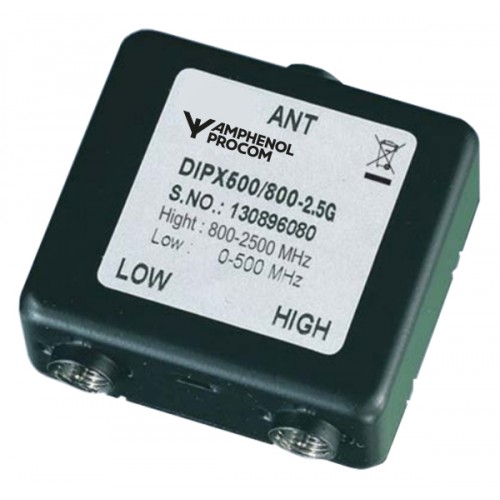

Diplex FiltersDIPX 500/800-2.5G

Diplexer for the 0 - 500 MHz and 800 - 2500 MHz Ranges

Description

Diplexer for combining or splitting the two ranges 0 - 500 MHz and 800 - 2500 MHz.
Excellent wide-band coverage – usable for a lot of applications.
Extremely small dimensions.
Quick installation using dual-adhesive pad (provided).
FME-connections on all terminals.

Specifications

Electrical

Model

DIPX 500/800-2.5G

Frequency

Ant-low port : 0 - 500 MHz
Ant-high port : 800 - 2500 MHz

Max. Input Power

Ant-low port : 20 W
Ant-high port : 15 W

Insertion Loss

Ant - low port : 0 - 500 MHz : < 0.5 dB typ. < 0.3 dB
Ant - high port:
800 - 2000 MHz : < 0.9 dB typ. < 0.4 dB
2000 - 2500 MHz : < 1.0 dB typ. < 0.7 dB

Impedance

50 Ω

Isolation

Low to high port :
0 - 500 MHz : > 45 dB typ. > 50 dB
800 - 2500 MHz : > 40 dB typ. > 50 dB

VSWR	Ant: < 1.5 (0 - 500 MHz, 800 - 2000 MHz) and : < 2.0 (2000 - 2500 MHz) with the others ports terminated with 50 Ω. Low: < 1.5 (0 - 500 MHz) with the others ports terminated with 50 Ω. High : < 2.0 (2000 -2500 MHz) with the others ports terminated with 50 Ω.

Mechanical

Connection(s)

Low : FME
High : FME
Antenna : FME

Dimensions

50 x 21 x 50 mm / 1.96 x 0.82 x 1.96 in.

Weight

Approx. 0.06 kg / 0.13 lb.

Mounting

Fitted with dual-adhesive pad at the bottom of box

Environmental

Operating temperature range

-30 °C to +60 °C

Ordering Designations

Model	Product No.
DIPX 500/800-2.5G	200000790

Typical Response Curve

The DIPX 500/800-2.5G makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, i.e. it must be resonant on the actual frequencies in the two bands. The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.

The diplexer can be operated together with any set of transceivers operating within the 0 - 500 MHz and 800 - 2500 MHz frequency bands.

Dual-frequency antennas are available for both mobile and base station applications.
