Diplex FiltersDIPX 225/330

Diplexer for the 0 - 225 MHz and 330 - 1300 MHz Ranges

Description

Diplexer for combining or splitting the two ranges 0 - 225 MHz and 330 - 1300 MHz.
Excellent wide-band coverage – usable for a lot of applications.
Extremely small dimensions.
Quick installation using dual-adhesive pad provided.
FME-, BNC-, SMA-, or TNC connectors on all terminals (see ordering).

Specifications

Electrical

Model

DIPX 225/330 …

Frequency

Ant - low port : 0 - 225 MHz
Ant - high port : 330 - 1300 MHz

Max. Input Power

35 W

Insertion Loss

0 - 225 MHz : ≤ 0.7 dB
330 - 1300 MHz : ≤ 0.7 dB

Impedance

50 Ω

Isolation

Low to high port : ≥ 40 dB

VSWR

< 1.5:1

Mechanical

Connection(s)

FME(m), BNC(f), SMA(f), TNC(f)
(see ordering)

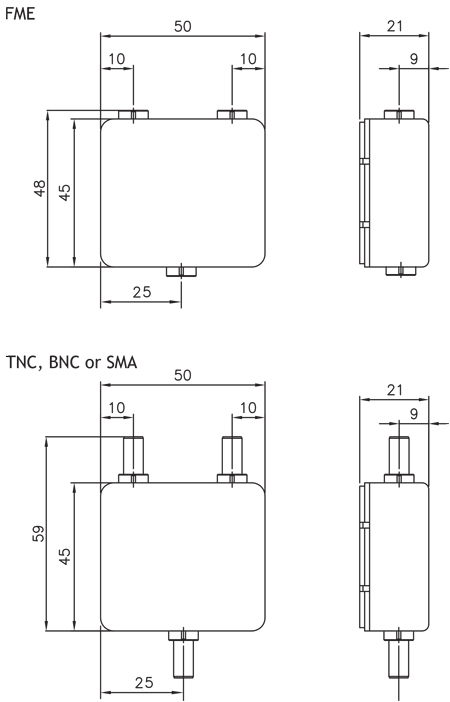

Dimensions

50 x 21 x 50 mm /
1.97 x 0.83 x 1.97 in.

Weight

Approx. 0.062 kg / 0.14 lb.

Environmental

Operating temperature range

-30 °C to +70 °C

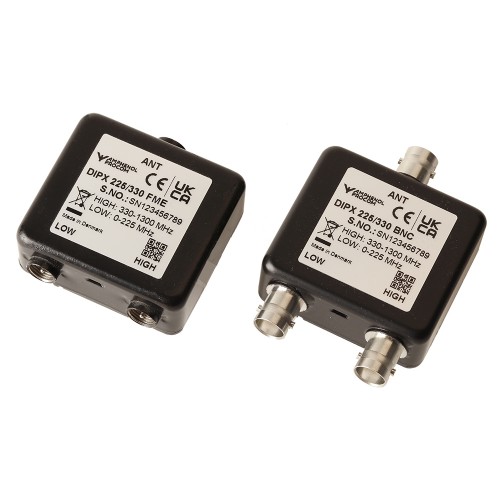

Ordering Designations

Model	Product No.
DIPX 225/330 FME	200000670
DIPX 225/330 BNC	200000671
DIPX 225/330 SMA	200000677
DIPX 225/330 TNC	200000698

Typical Response Curve

Installation

The DIPX 225/330 makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, e.i. it must be resonant on the actual frequencies in the two bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a lowloss path between the transceiver and the antenna which is not loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating
within the 0 - 225 MHz and 330 - 1300 MHz frequency bands.

Dual-frequency antennas are available for both mobile and base station applications.
