- Diplexer for splitting a combined GPS and TETRA radio signal.
- Allows you to connect a separate radio and GPS antenna to a common radio port.
- DC power supply for the high port to supply power to an active GPS antenna.
- Extremely low insertion loss.
- High isolation between the two antenna ports.
- Especially suitable for the Motorola Digital Car Kit (DCK).
- Wide-band coverage on the antenna ports:
- low (radio): 0000 - 1000 MHz
- high (GPS): 1550 - 2500 MHz
- Easy installation with the mounted, double-sided adhesive pad.
- RF Connectors: FME mounting plug.
- DC connection: 1 m RG 316 cable with FME female connector for Motorola Car Kit.

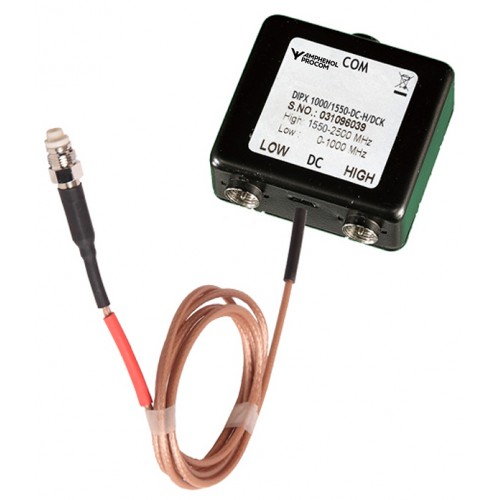

Diplex FiltersDIPX 1000/1550-DC-H/DCK
Diplexer for the 0 - 1000 MHz and 1550 - 2500 MHz Ranges
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||

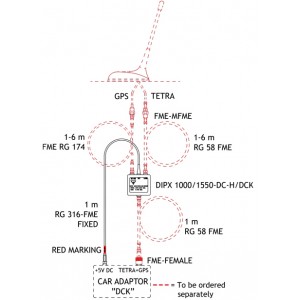

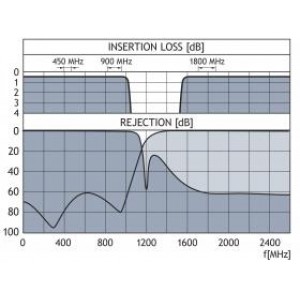

Diagram and Mounting
Diagrams
Diagrams
Ordering Designations
| Model | Product No. | |
|---|---|---|
| DIPX 1000/1550-DC-H/DCK | 200000789 |
