- Diplexer for combining or splitting the two ranges 0 - 1000 MHz and
1550 - 2700 MHz. - Excellent wide-band coverage – usable for a lot of applications.
- Extremely small dimensions.
- Quick installation using the dual-adhesive pad provided.
- FME-connections on all terminals.
- DC pass on certain models. See ordering section.

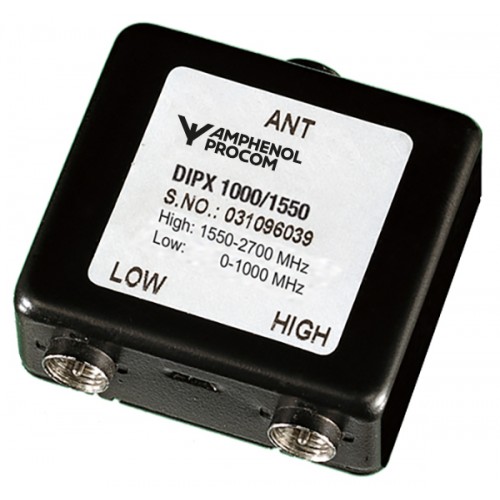

Diplex FiltersDIPX 1000/1550-...
Diplexer for the 0 - 1000 MHz and 1550 - 2700 MHz Ranges
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||
Ordering Designations
| Model | Product No. | Description | |
|---|---|---|---|
| DIPX 1000/1550-DC-L | 200000750 | DC Pass : LOW port to ANT port | |
| DIPX 1000/1550-DC-H | 200000749 | DC Pass : HIGH port to ANT port | |
| DIPX 1000/1550-DC-LH | 200000748 | DC Pass : LOW and HIGH port to ANT port | |
| DIPX 1000/1550-DC-NO | 200002054 | No DC pass |
Typical Response Curve
Installation
The DIPX 1000/1550-... makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, i.e. it must be resonant on the actual frequencies in the two bands. The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.
The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating within the 0 - 1000 MHz and 1550 - 2700 MHz frequency bands.
Dual-frequency antennas are available for both mobile and base station applications.
