- For future solutions, integrating duplex filter with repeater.
- Delivered unassembled and without filter (to be ordered seperately).

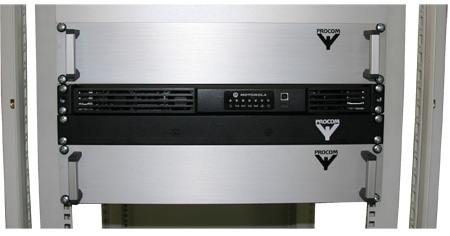

- The 19" Duplexer mounting kit with the Procom duplex filter MPX 2/6... , MPX 70/6... , DPF 2/6... and DPF 70/6 duplex filters are easily rack mounted.
- The mounting kit is one unit (1HU) high and compatible with both types of Procom duplex filters, one for MPX filter and one for DPF filter.
Mounting Kits for Filters19" Duplexer Mounting kit
19" Rack mounting kit for MPX 2/6... , MPX 70/6... , DPF 2/6... and DPF 70/6 duplex filters.
Description
Specifications
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
Ordering Designations
| Model | Product No. | Description | |
|---|---|---|---|
| 19" MPX Mounting kit | 210002291 | MPX filter | |
| 19" DPF Mounting kit | 210002327 | DPF filter | |
| Accessories | |||
| Cables for Motorola SLR 5500 | 210002305 | Can also be used with Motorola DR3000 | |
| Cables for ICOM IC-FR5000 and IC-FR6000 | 210002351 | ||
| Cables for HYTERA RD 98x and 98xS | 210002352 | ||
Additional Data
| MODEL | 19" Duplexer Mounting kit |
|---|---|
| CONSISTS OF | 1 HU Frontplate 1 Mounting plate 2 black M5x6 mm screw 4 M4x6 mm screw |
| To be ordered seperately: Cables for Motorola SLR 5500 |
500 mm RG 400 cable 50 Ohm N(m) straight /N(m) angle 500 mm RG 400 cable 50 Ohm N(m) straight / BNC(m) angle |
| To be ordered seperately: Cables for ICOM IC- FR5000 and FR6000 |
500 mm RG 400 cable 50 Ohm N(m) straight / N(m) angle 500 mm RG 400 cable 50 Ohm N(m) straight / N(m) angle |
| To be ordered seperately: Cables for HYTERA RD98x and RD98xS |
500 mm RG 400 cable 50 Ohm N(m) straight / N(m) angle 500 mm RG 400 cable 50 Ohm N(m) straight / N(m) angle |
| MECHANICAL | |
|---|---|
| DIMENSIONS (W x H x D) |
19'' x 1HU x D. (483 x 43 x 220 mm (DPF)) (483 x 43 x 130 mm (MPX)) |
| WEIGHT: DPF | 600 g. |
| WEIGHT: MPX | 500 g. |
Mounting Kit
Filter not included

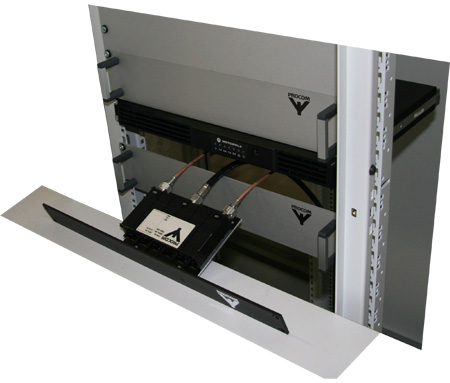

CAN BE CLOSED ABOVE OR BELOW THE REPEATER
TX AND RX CABLES CAN BE SWITCHED TO HIGH OR LOW ON THE FILTER
CABLES CAN BE SWITCHED FROM THE FRONT
