Low Noise AmplifiersPRO-LNA-350-520-...

Band selective High-Performance Low Noise Amplifier / Preamplifier for the 350 - 520 MHz band with built-in low-loss preselector

Description

Covers the whole frequency range from 350 - 520 MHz.
Built-in low-loss input preselector. Prevents amplifier overload from e.g. nearby transmitters in adjacent frequency bands:
- Rejects the entire HF/VHF range from 0 to 240 MHz > 30 dB
- Rejects LTE, GSM and UMTS > 30 dB
Miniature LNA suitable for:
- Preamplifier in receiver systems to ensure low system noise figure.
- Preamplifier in antenna signal distribution network.
- Compensating for high cable loss.
Very low noise figure ensures best possible S/N ratio of weak RF signals.
Excellent amplifier dynamic range ensure handling of strong RF signals with very low level of IM distortion.
Low input and output VSWR ensure excellent termination of connected units (e.g. filters).
Low power consumption.
Built-in voltage regulator ensures wide supply voltage range.
DC supply on solder terminal or on 2.5 mm barrel DC connector.
DC supply from phantom voltage on the output cable available as option (-PHDC).
Available with N(f), SMA(f) or TNC(f) connectors.
Low weight.
Wide temperature range.
Sturdy aluminium box.
This filter is coated with black vinyl to prevent corrosion.

Specifications

Electrical

Model

PRO-LNA-350-520-...

Frequency

350 - 520 MHz

Amp. Gain

19 dB ± 2 dB

Max. Output Power @ 1 dB Compression (P1dB)

> 17 dBm

Noise Figure

< 1.5 dB, typ. 1.2 dB @ 23 °C

Output 3. Order Intercept point (OIP3)

> 33 dBm

Impedance

50 Ω

Input VSWR

< 1.5:1 (Output loaded with 50 Ω)

Output VSWR

Max. 1.5:1 (Input loaded with 50 Ω)

Max. Input Power (dBm)

20 dBm

Isolation

≥ 25 dB

Power Supply

8 - 25 V DC

Current Consumption

Typ. 75 mA

Selectivity

See GAIN / VSWR curve

Mechanical

Connection(s)

N(f), SMA(f) or TNC(f)

Dimensions

130 x 90 x 36 mm / 5.1 x 3.5 x 1.4 in.

Weight

Approx. 0.21 kg / 0.46 lb.

Environmental

Operating temperature range

-30 °C to +60 °C

Storage temperature range

-40 °C to +85 °C

Ingress Protection

IP31

Ordering Designations

Model	Product No.
PRO-LNA-350-520-N(f)	210002216
PRO-LNA-350-520-SMA(f)	210002217
PRO-LNA-350-520-TNC(f)	210002218
Accessories
Power Supply AC/DC 12V/1A EU/UK/US	240000060

Block Schematic

Power Supply Connection

Mounting Details

All dimensions are given in mm [in.]

Power Supply AC/DC 12V/1A EU/UK/US

Typical Gain and VSWR Curve

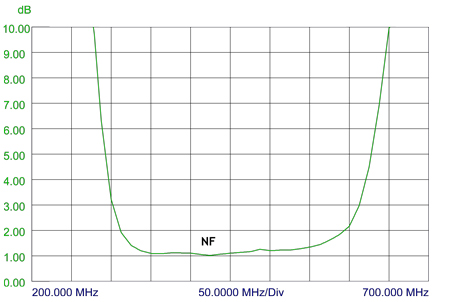

Typical Noise Figure

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type PRO-LNA-350-520-... is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-PRO-LNA-350-520.pdf
