PRO-BPF 1800-1900-N

Band Pass FiltersPRO-BPF 1800-1900-N

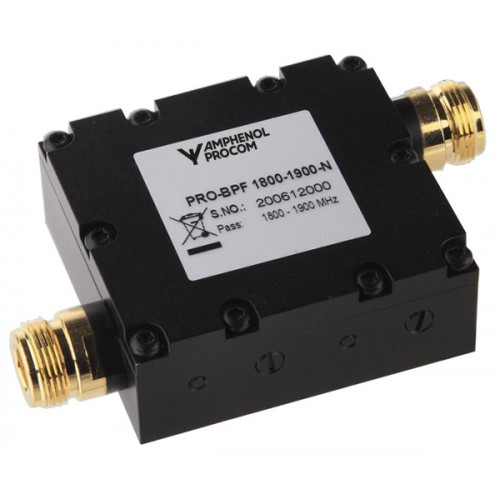

Band-Pass Filter for 1800 - 1900 MHz

Description

  • PRO-BPF 1800-1900-N is a robust interdigital band-pass filter.
  • Allows the whole 1800 – 1900 MHz band to pass.
  • Can be used as a preselector or cover filter to protect against out of band interferences.
  • Small dimensions, mounted in a 62 x 57 mm case.
  • N connectors for rugged and reliable connections.
  • PRO-BPF 1800-1900-N is lacquered with black vinyl enamel to avoid corrosion.

Specifications

Electrical
Model PRO-BPF 1800-1900-N
Frequency 1800 - 1900 MHz
Max. Input Power 35 W
Insertion Loss ≤ 0.8 dB, typ. 0.6 dB
Impedance 50 Ω
Reject Attenuation See curve (typ.)
VSWR < 1.4:1
Bandwidth 100 MHz
Mechanical
Connection(s) N(f) (other on request)
Dimensions 95 (incl. conn) x 24 x 57 mm /
3.74 x 0.94 x 2.24 in.
Weight Approx. 0.24 kg / 0.53 lb.
Environmental
Operating temperature range -30 °C to +60 °C

Diagram

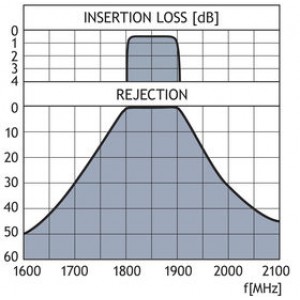

TYPICAL RESPONSE CURVES

Ordering Designations

Model Product No.
PRO-BPF 1800-1900-N(f) 200001835
