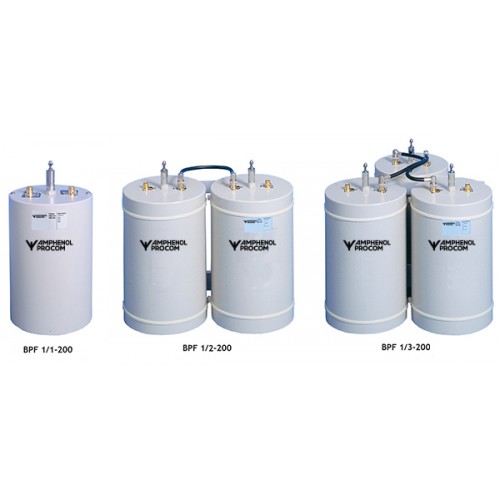

BPF 1/...-200

Band Pass FiltersBPF 1/...-200

Band-Pass Filters for the 225 - 400 MHz Band

Description

  • High power base station band-pass filters for the 225 - 400 MHz range.
  • The use of large ø200 mm cavities means a high Q,
    resulting in a very narrow passband.
  • The large dimensions also mean a high power rating.
  • Unloaded Q of a single cavity is approx. 7000.
  • High frequency stability on temperature and power.
  • Mounted on 19” brackets. **
  • ** See "CAVITY MOUNTING OPTIONS" ( ø200 cavity)

Specifications

Electrical
Model BPF 1/1-200 BPF 1/2-200 BPF 1/3-200
Frequency 225 - 400 MHz (Under change!)
Max. Input Power 350 W @ 0.5 dB IL
150 W @ 2.0 dB IL		 350 W @ 1.0 dB IL
150 W @ 4.0 dB IL		 350 W @ 1.5 dB IL
150 W @ 6.0 dB IL
Insertion Loss Adjustable 0.5 - 2.0 dB Adjustable 1.0 - 4.0 dB Adjustable 1.5 - 6.0 dB
Impedance 50 Ω
Attenuation See diagram
VSWR < 1.5:1
Mechanical
Connection(s) N(f)
Dimensions ø200 x 450 mm /
ø7.87 x 17.72 in.		 200 x 415 x 450 mm /
7.87 x 16.34 x 17.72 in.		 410 x 410 x 450 mm /
16.14 x 16.14 x 17.72 in.
Weight Approx. 3.2 kg / 7.05 lb. Approx. 6.6 kg / 14.55 lb. Approx. 10 kg / 22.05 lb.
Environmental
Operating temperature range -30 °C to +60 °C
Frequency Stability Approx. 1.5 ppm / °C

Ordering Designations

Model Product No.
BPF 1/1-200 200002289
BPF 1/2-200 200002290
BPF 1/3-200 200002291

TYPICAL RESPONSE CURVE FOR BPF 1/1-200

BPF 1 1 200 kurve

TYPICAL RESPONSE CURVE FOR BPF 1/2-200

BPF 1 2 200 kurve

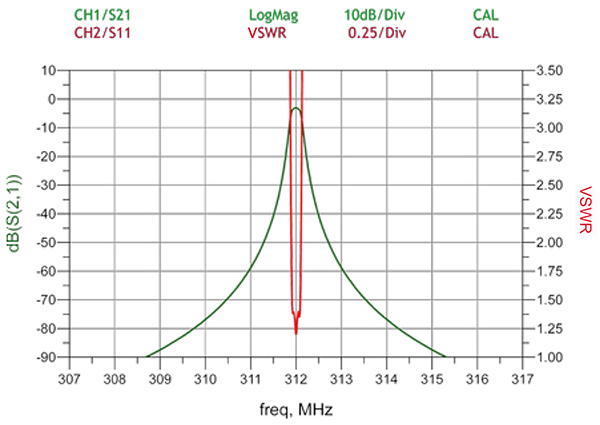

TYPICAL RESPONSE CURVE FOR BPF 1/3-200

BPF 1 3 200 kurve
