DAS AntennasPCPI 70/xH/...

Indoor Left or Right Hand Circularly Polarized Patch Antennas for mounting on Wall or Ceiling

Description

Low-profile antenna for the 450 MHz band.
PCPI 70/xH/... is a Left or Right Hand Circularly Polarized patch antenna for indoor use.
Circularly polarized antenna is chosen to avoid out-of-phase signals.
Reduces flutter considerably.
Specially designed for closed rooms.
Covers approx. 20 MHz with a radiation of approx. 7 dBic (5 dBi in each E- and H-plane).
Full size ½ λ patch antennas.
The antennas are carefully sealed with a discrete cover.
The connector is placed at one side to enable mounting close to a wall or a ceiling.
Chassis also available in stainless steel PCPI 70R/xH/... (see ordering designations).
Connection also available on backside (see overleaf).

Specifications

Electrical

Model

PCPI 70/xH/...

Frequency

380 - 470 MHz covered by four models

Antenna Type

Left or right hand circularly polarized patch antenna

Max. Input Power

100 W

Polarisation

Circular

3 dB Beamwidth, E-Plane

80 °

3 dB Beamwidth, H-Plane

80 °

Impedance

50 Ω

Gain	7 dBic (5 dBi)

In iBwave

Yes

Mechanical

Connection(s)

N(f)

Materials

Cover : PS (white)
Chassis : Aluminium

Colour

Marine white

Dimensions

Approx. 415 x 415 x 25 mm
/ 16.34 x 16.34 x 0.98 in.

Weight

Approx. 1.8 kg / 3.97 lb.

Mounting

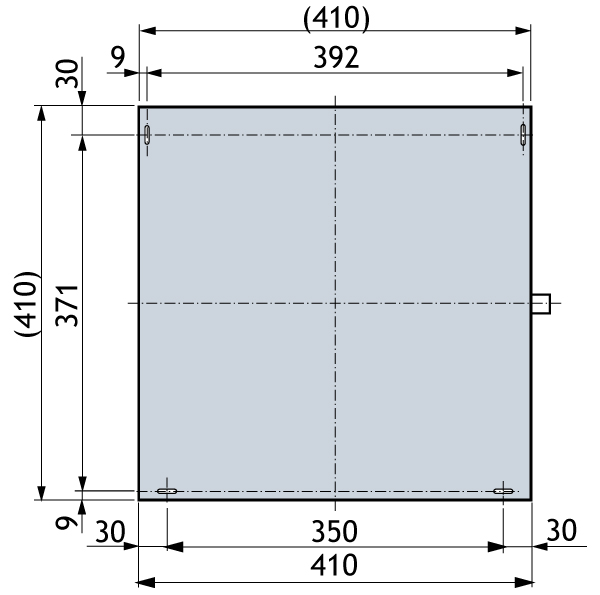

For mounting on wall or ceiling 4.5 mm dia x 20 mm (4 holes)

Environmental

Operating temperature range

-30 °C to +75 °C

Storage temperature range

-40 °C to +75 °C

Humidity

< 90% non-condensing

Ingress Protection

IP55

Ordering Designations

Model	Product No.	Frequency
Standard version
PCPI 70/LH/s	100000146	380 - 400 MHz
PCPI 70/LH/f	100000147	410 - 430 MHz
PCPI 70/LH/l	100000148	430 - 450 MHz
PCPI 70/LH/h	100000149	450 - 470 MHz
PCPI 70/RH/s	100000145	380 - 400 MHz
PCPI 70/RH/f	100000143	410 - 430 MHz
PCPI 70/RH/l	100000144	430 - 450 MHz
PCPI 70/RH/h	100000150	450 - 470 MHz
Stainless steel version
PCPI 70R/LH/s	100000302	380 - 400 MHz
PCPI 70R/LH/f	100000303	410 - 430 MHz
PCPI 70R/LH/l	100000304	430 - 450 MHz
PCPI 70R/LH/h	100000305	450 - 470 MHz
PCPI 70R/RH/s	100000306	380 - 400 MHz
PCPI 70R/RH/f	100000151	410 - 430 MHz
PCPI 70R/RH/l	100000307	430 - 450 MHz
PCPI 70R/RH/h	100000152	450 - 470 MHz
BC version
PCPI 70/LH/s-BC	100000337	380 - 400 MHz
PCPI 70/LH/f-BC	100000338	410 - 430 MHz
PCPI 70/LH/l-BC	100000339	430 - 450 MHz
PCPI 70/LH/h-BC	100000340	450 - 470 MHz
PCPI 70/RH/s-BC	100000333	380 - 400 MHz
PCPI 70/RH/f-BC	100000334	410 - 430 MHz
PCPI 70/RH/l-BC	100000335	430 - 450 MHz
PCPI 70/RH/h-BC	100000336	450 - 470 MHz
