- High power base station duplex filter for the 140 - 175 MHz range.
- The use of large ø250 mm cavities means a high Q, resulting in a very narrow duplex spacing.
- The large dimensions also mean a high power rating.
- Unloaded Q of a single cavity is approx. 8000.
- High frequency stability on temperature and power.
- Suitable for Wall Mounting (WM) by opening the Duplexer and have all 6 cavities in a row, so they can be attached with screws through the brackets and into the wall.
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||
|
||
Diagram and Mounting
TYPICAL RESPONSE CURVES FOR 500 kHz DUPLEX
Ordering Designations
| Model | Product No. | |
|---|---|---|
| DPF 2/33-250-WM | 200001877 |

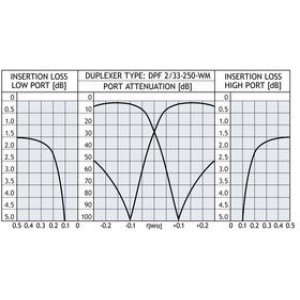

Typical response curve for 500 kHz Duplex
