ProGNSS-25

GPS Combination AntennasProGNSS-25

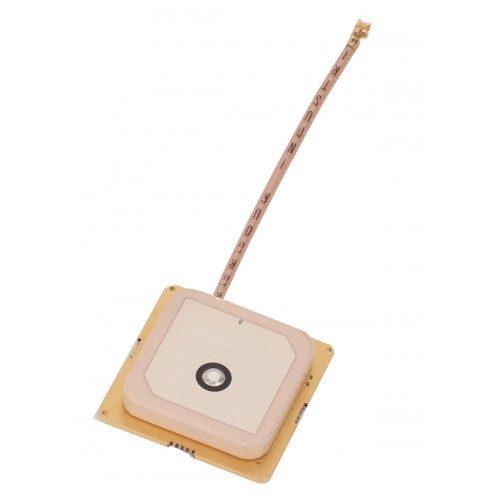

GNSS Patch Antenna Module

Description

  • GNSS antenna for GPS L1, Glonass, Beidou and Galileo.
  • Broad Banded Ceramic Antenna Element (25 x 25 mm)
  • Active
  • Full hemispherical coverage.
  • Built-in 29 dB low noise amplifier.
  • Right-Hand Circular Polarization.
  • 3 - 15 V DC, DC supply via RF-connector.


Specifications

Electrical
Model ProGNSS-25
Frequency 1559 - 1610 MHz
(GPS L1, Glonass, BeiDou and Galileo)
Antenna Type Patch Antenna
Polarisation RHCP
Pattern Type Hemispherical
Impedance 50 Ω
Axial Gain 31 dBic (typ.)
Cross Polar Attenuation > 10 dB (typ.)
EMC Full Protection (EN 301 489-1)
Mechanical
Connection(s) U.FL plug on 60 mm 1.13 mm coax
Materials Ceramic, FR4
Dimensions Approx. 29.5 x 29.5 x 8 mm /
1.16 x 1.16 x 0.31 in.
Weight Approx. 0.02 kg / 0.04 lb.
GNSS LNA
Gain (GNSS LNA) 29 dB ±3 dB
Noise Figure (GNSS LNA) < 3.5 dB : 1559 - 1610 MHz
Typ. 2.0 dB @ 1575 MHz
Attenuation Out Of Band (GNSS LNA) > 25 dB, 0 - 1525 MHz
> 25 dB, 1640 - 3000 MHz
P1dB (GNSS LNA) > 6 dBm
VSWR (output) (GNSS LNA) < 2.0:1
Supply voltage (GNSS LNA) 3 - 15 V DC
Current Consumption (GNSS LNA) 20 mA
Environmental
Operating temperature range -40 °C to +75 °C

Ordering Designations

Model Product No.
ProGNSS-25 112000091

Mechanical Outline

ProGNSS 25 Mechanical outline

All dimensions are given in mm [in.]
