- Wideband Omni LTE/5G Coverage: 617 - 7200 MHz
- Input Power: Capable of handling up to 50 W
- High quality enclosure rated IP67 for water and dust ingress and IK10 for impact
- Easy mounting with a single through-hole stud
- Multiple antennas can also be used together for MIMO applications
- For optimal performance in the low band, a ground plane (500 x 500 mm) is recommended.
Description

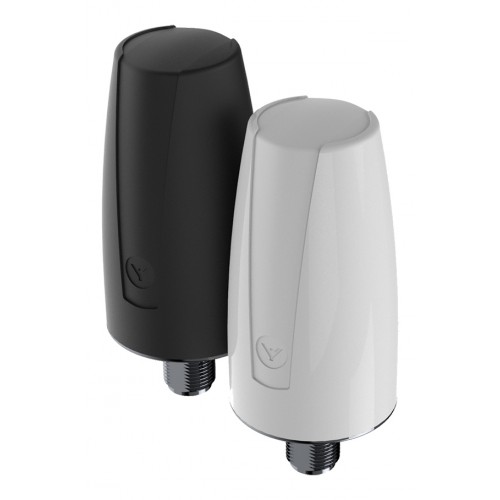

The ProShotGN antenna, a Shot Glass Style Omni Mobile Antenna, is engineered to provide wideband coverage across a broad frequency range of 617 - 7200 MHz. This makes it suitable for 2G/3G/4G and 5G networks, WiFi 6E and WiFi 7 networks, as well as IoT and M2M applications, among others. Its wideband capabilities ensure the antenna is versatile for a wide range of applications.
The ProShotGN is designed for easy mounting and is weatherproof, with IP67 and IK10 ratings. Its omnidirectional pattern and wideband frequency coverage makes it perfect for worldwide use. Whether it is for vehicles, industrial settings, cellular modems/routers, or M2M applications, the ProShotGN stands out.
Specifications
| Electrical | |||||
|---|---|---|---|---|---|
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
| Mechanical | ||||
|---|---|---|---|---|
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
| Environmental | ||
|---|---|---|
|
||
|
||
|
||
Ordering Designations
| Model | Product No. | Frequency | |
|---|---|---|---|
| ProShotGN-W | 130002540 | 617 - 7200 MHz | |
| ProShotGN-B | 130002545 | 617 - 7200 MHz |
Note
* Measured with 2 m [78.7 in.] of RG 58 cable on a 500 x 500 mm [19.7 x 19.7 in.] ground plane.

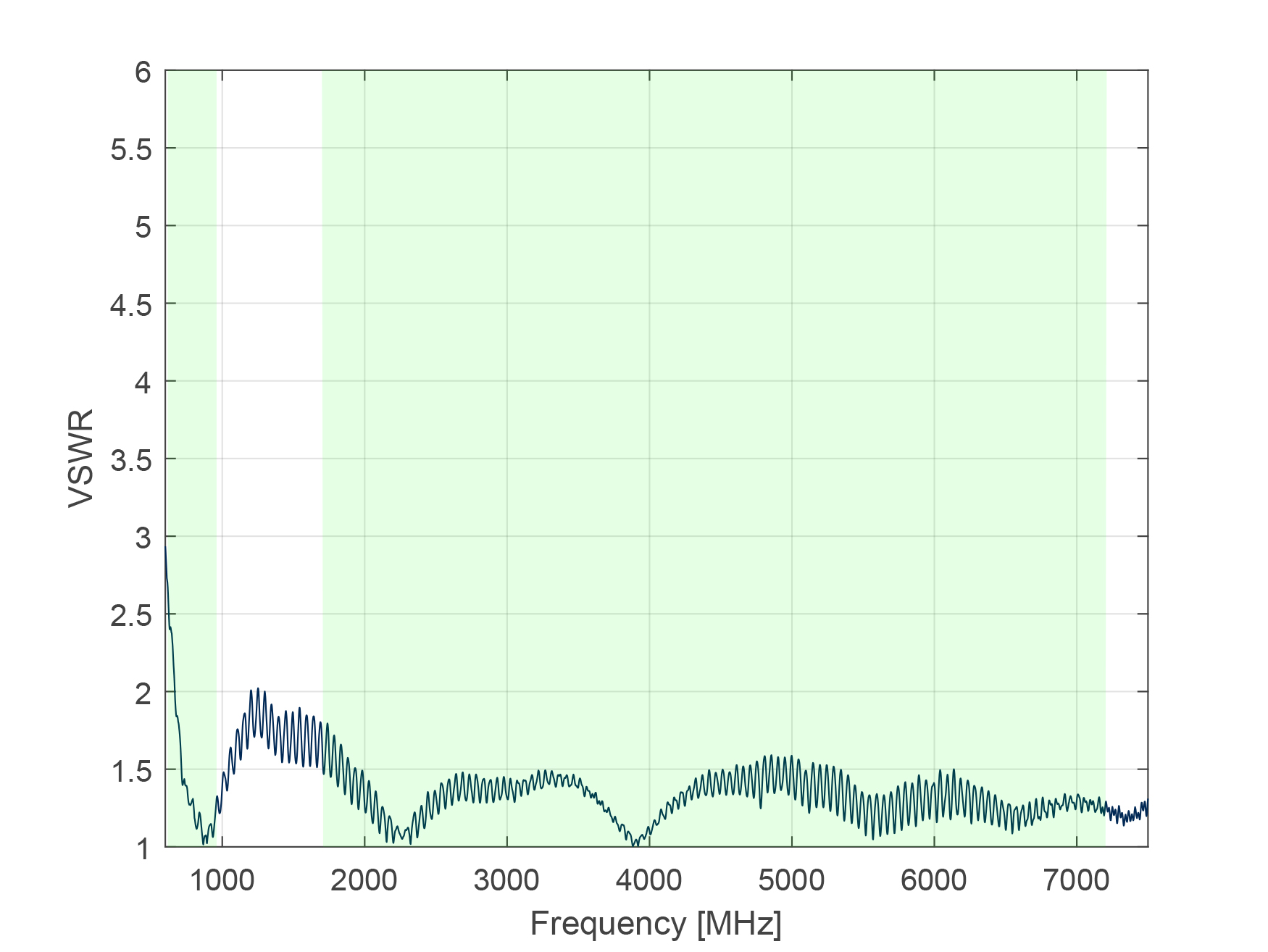

Typical VSWR curve
Measured with 2 m [78.74 in.] of RG 58 cable on a 500 x 500 mm [19.69 x 19.69 in.] ground plane.

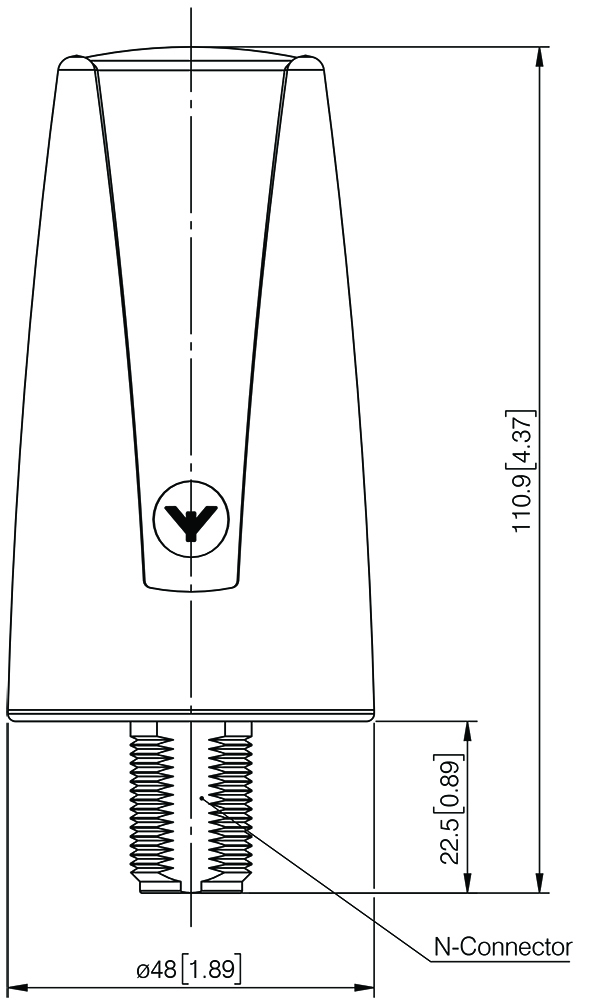

Mechanical outline
All dimensions are given in mm [in.]

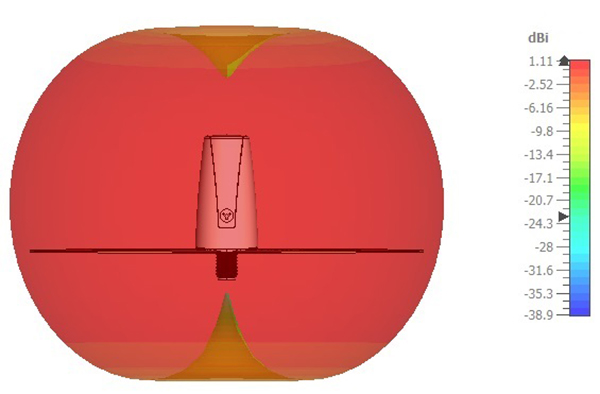

Typical Radiation pattern 617 MHz

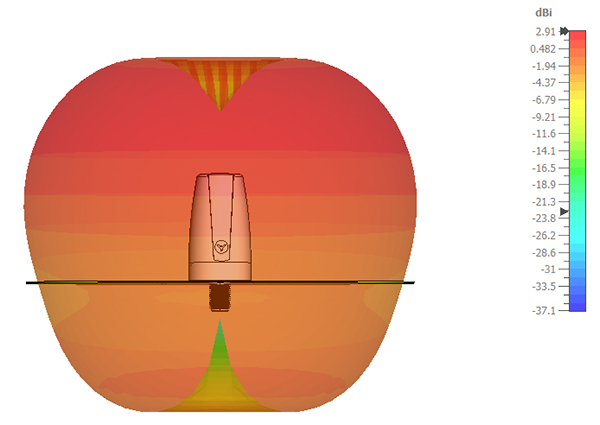

Typical Radiation pattern 960 MHz

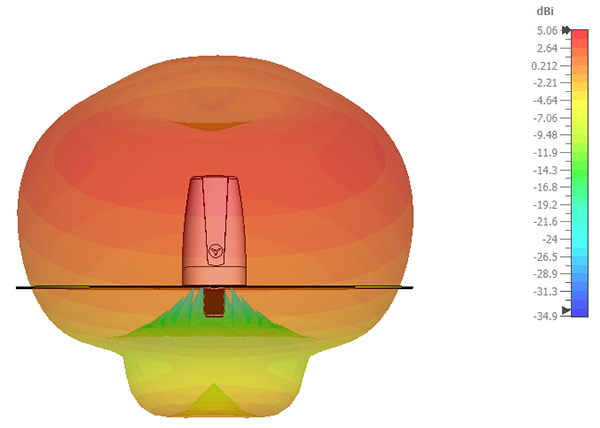

Typical Radiation pattern 1710 MHz

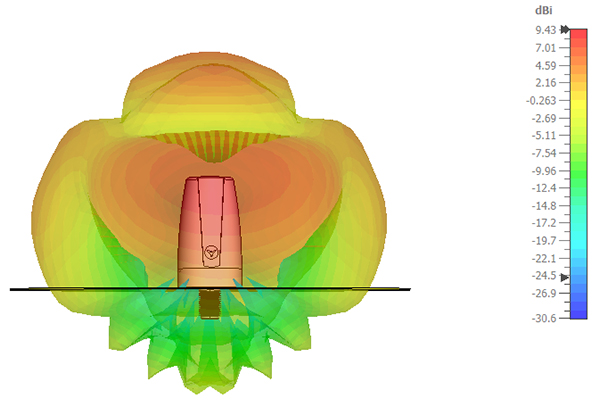

Typical Radiation pattern 3800 MHz

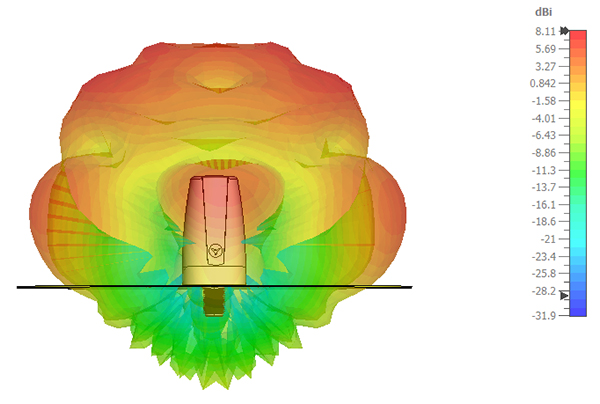

Typical Radiation pattern 6000 MHz

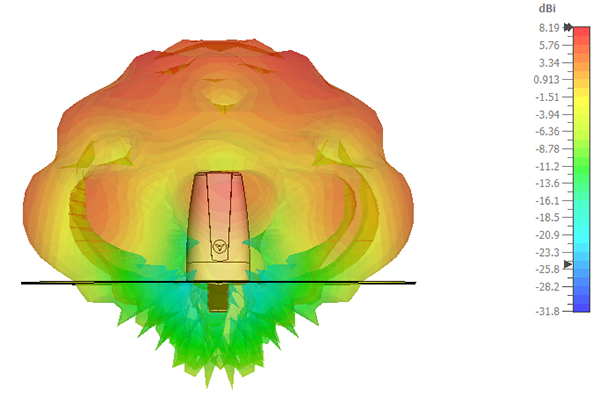

Typical Radiation pattern 7200 MHz
