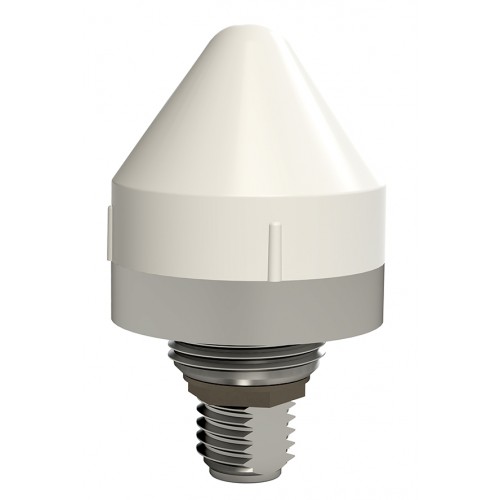

GPS AntennasGNSS 2020

Active Receiving Antenna for the GPS, GLONASS, BEIDOU and GALILEO

Description

Full hemispherical coverage for the GNSS.
Built-in high gain, low noise amplifier.
Input filter for thorough RF-overload protection.
Right-hand circular polarization (RHCP).
3 V - 15 V supply voltage.
DC supply via RF-connector.
Total design carried out to make the antenna withstand tough environments.
Comprehensive range of accessory mounting brackets available.

Specifications

Electrical

Model

GNSS 2020

Frequency

1559 - 1610 MHz

Antenna Type

Patch Antenna

Polarisation

RHCP

Pattern Type

Hemispherical

Impedance

50 Ω

Axial Gain

31 dBic (typ.)

Power Supply

3 - 15 V DC

Cross Polar Attenuation

> 10 dB (typ.)

EMC	Full protection (EN 301 489-1)

Mechanical

Insulation

Connector ground terminal galvanically insulated from the mounting hardware

Antenna Colour

White (RAL 9010)

Connection(s)

N(f)

Materials

Antenna dome : Weather-resistant low-loss plastic

Wind Area

0.0045 sq. m / 0.05 sq. ft.

Wind Load

Approx. 3.7 N @ 160 km/h / 99.42 mph.

Diameter

50 mm / 1.97 in.

Height

Approx. 84 mm / 3.3 in.

Weight

Approx. 0.25 kg / 0.55 lb.

Mounting

Vertical on pipe mast ø 25 - 33 mm / 1.00 - 1.30 in.
on a mounting bracket 35 - 55 mm / 1.38 - 2.17 in.

GNSS LNA

Gain (GNSS LNA)

> 29 dB ± 3 dB

Noise Figure (GNSS LNA)

< 3.5 dB : 1559 - 1610 MHz,
typ. 2.0 dB @ 1575 MHz

Attenuation Out Of Band (GNSS LNA)

> 50 dB, f < 1525 MHz
> 50 dB, f > 1650 MHz

P1dB (GNSS LNA)

> 6 dBm

VSWR (output) (GNSS LNA)

< 2.0:1

Supply voltage (GNSS LNA)

3 - 15 V DC

Current Consumption (GNSS LNA)

20 mA

Environmental

Operating temperature range

-40 °C to +70 °C

Survival Wind Speed

200 km/h

Ingress Protection

IP67

Ordering Designations

Model	Product No.
GNSS 2020	112000093
GNSS 2020-1"	112000094
Accessories
Bracket w. clamps	112000095
1" Mount	112000096

Dimensions

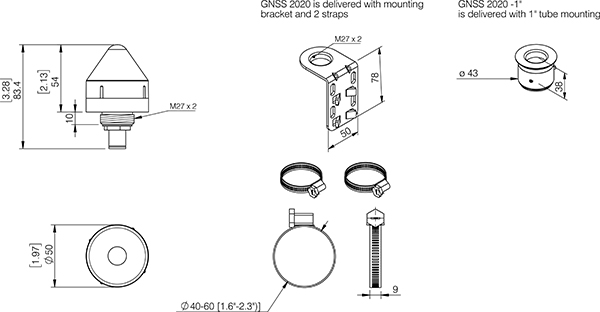

GNSS 2020 Dimensions

Mounting Details

All dimensions are given in mm [in.]

Accessories for GNSS 2020 1"

Bjaelke YA acc samlet GB

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GNSS 2020 is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GNSS2020.pdf
