GNSS Combination AntennasLP-TB 2.4-7.2-W4

A 4x4 Multiband Wi-Fi antenna

Description

The LP-TB 2.4-7.2-W4 provides Wi-Fi antennas for fixed or mobile
end-point devices.
The low profile makes the antenna ideal for discreet installations.
The LP-TB 2.4-7.2-W4 is a triple band Wi-Fi antenna
covering 2.4-2.5/4.9-7.2 GHz
Dedicated 4x4 MIMO Wi-Fi antenna

Specifications

Electrical

Model

LP-TB 2.4-7.2-W4

Frequency

2.4 - 2.5 GHz

4.9 - 7.2 GHz

Antenna Type

Mobile Disk Style Antenna

Max. Input Power

10 W

Polarisation

Vertical

Impedance

50 Ω

Gain	1 dBd (3 dBi)

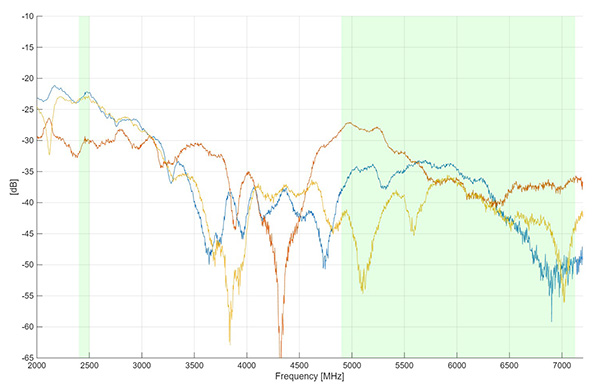

Isolation *

> 20 dB

> 30 dB

VSWR *

< 2.5

< 2.0

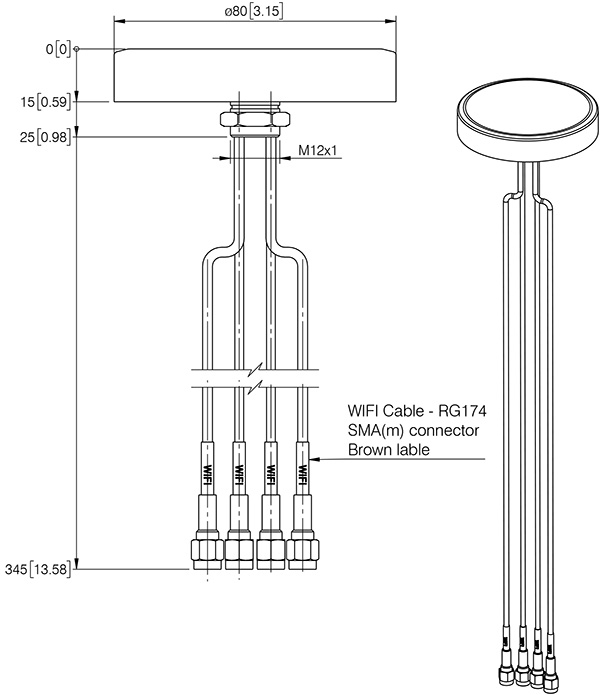

Mechanical

Connection(s)

RG174, SMA(m) (all antennas)

Materials

ABS, Brass

Installation Torque

4 ±0.5 Nm

Colour

Black (RAL 9005)

Dimensions

ø 80 mm / 3.12 in.

Height

15 mm / 0.60 in.

Weight

Approx. 82 g / 0.18 lb.

Mounting

13 mm / 0.5 in. dia. hole

Environmental

Operating temperature range

-20 °C to +65 °C

Ingress Protection

IP54

Ordering Designations

Model	Product No.
LP-TB 2.4-7.2-W4-S	127000007
LP-TB 2.4-7.2-W4-RP-S	127000008
LP-TB 2.4-7.2-W4-P5-S	Contact for availability
LP-TB 2.4-7.2-W4-P5-RP-S	Contact for availability

Ordering designations

Use the guide below to assign the name of the LP-TB 2.4-7.2 you would like to order.

Model Name	No. of WIFI antennas	Cable length	Connectors WIFI
LP-TB 2.4-7.2	-W4 (4x WIFI antenna)	Blank (approx. 0.3 m / 1 ft. cable length) -P5	-S (SMA-M) -RP-S (Reverse Polarity SMA-M)
Naming Example
LP-TB 2.4-7.2	-W4		-S
