- Mobile antenna for the 2400 MHz band.
- Colinear, stainless steel whip.
- 2 dB gain compared to a ¼ λ whip.
- Stainless steel LX-mount – professional quality in elegant and smooth design.
- Especially suited for roof-mounting.
- Provided with FME-connection (supplied without cable).
- Bendable section in mount for adjustment of whip (tiltable 15° by hand).
- Installation with access from the outside only (requiring an
18 mm dia. hole).
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
Ordering Designations
| Model | Product No. | |
|---|---|---|
| MU 2404-LX | 130001267 |
Installation
The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof to ensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only.
When cleaning the car in car-washing machines, the whip should be removed – a 9 mm fork spanner can be used. After wash, the whip is refitted and tightened lightly with the spanner.
The mount is equipped with a bendable section (±15°) to make it possible to adjust the antenna to an upright position.

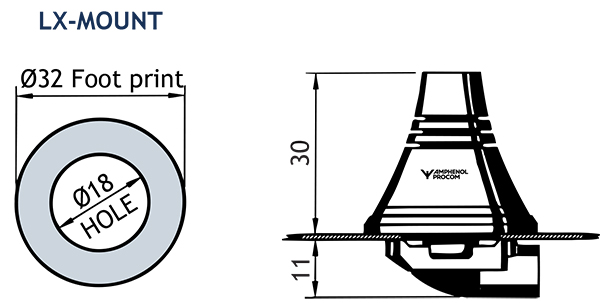

1. Installation Dimension
2. Installation Steps
Do not use sealer on rubber gasket or other places.
3. Tuning
The antenna is delivered factory-tuned and requires no further tuning.
Please Note
When tightening the revolving nut (see picture 4), special care must betaken to keep the spanner in the correct position.
