GPS Combination AntennasGPS-C 4/2/TETRA-S BBMU/...

Colinear Mobile Antenna for the 4m, 2m and TETRA Bands

Description

External antenna whip mounted on the GPS-Combi mount.
- Polyethylene-covered flexible whip.
- Easily removable whip for cleaning in car-washing machine.
GPS-antenna for fixed installations.
- Full hemispherical coverage.
- Built-in high-gain, low-noise amplifier.
- Right-Hand Circular Polarization (RHCP).
- 5 V supply voltage (3 V and 12 V respectively available on request).
- DC supply via RF-connector.
- Matching unit (BBMU) included.
When ordering the antenna, please state the centre frequency on each band.

Specifications

Electrical

Model

GPS-C 4/2/TETRA-S BBMU/...

Frequency

4 m : 74.2 - 87.5 MHz
2 m : 167.5 - 174 MHz
70 cm : 380 - 400 MHz

Antenna Type

Collinear mobile antenna

Max. Input Power

25 W

Polarisation

Vertical

Impedance

50 Ω

VSWR	74.2 - 77.7 and 84 - 87.5 MHz : ≤ 2.5:1 167.5 - 169.5 and 172 - 174 MHz : ≤ 2.0:1 380 - 400 MHz : ≤ 2.0:1

Gain (EIA RS-329-1)

4 m : approx. -3 dB
2 m : approx. -4 dB
70 cm : approx. 2 dB
(acc. to EIA RS-329-1)

Mechanical

Materials

Whip : Glass fibre whip with copper wire winding, polyethylene-covered
Black-chromed brass
Spring : Black-chromed stainless steel

Colour

Black

Height

Approx. 670 mm / 26.38 in.

Weight

Approx. 0.06 kg / 0.13 lb.

Mounting

On the GPS-Combi mount

GPS Antenna

P1dB (GPS Amplifier)

Approx. +7 dBm

Coverage (GPS)

Hemispherical

Gain (GPS)

28 dBic in axial direction (typ.)

Connection(s) (GPS)

FME(m) (male for GPS) +
FME(f) (female for mobile antenna)

Mounting (GPS)

ø18.0 mm dia. hole for roof thickness up to 2.0 mm
ø18.5 mm dia. hole for roof thickness 2.0 - 2.5 mm
ø19.0 mm dia. hole for roof thickness 3.5 - 7.5 mm
Tools for mounting included

Antenna Type (GPS)

Active patch antenna

Noise Figure (GPS Amplifier)

< 1 dB (typ.)

Cross Polar Discrimination (GPS)

> 10 dB (typ.)

Gain (GPS Amplifier)

> 30 dB (typ.)

VSWR (GPS Amplifier)

< 2.0:1

Operating Temperature Range (GPS)

-35 °C to +75 °C

Selectivity (GPS)

> 45 dB down @ ± 45 MHz

Installation Torque (GPS)

4 ± 0.5 Nm

Frequency (GPS)

1575 MHz

Weight (GPS)

Approx. 0.114 kg / 0.25 lb.

Power Supply (GPS)

5 ± 0.5 V DC (3 V resp. 12 V on request)

Current Consumption (GPS Amplifier)

0.025 mA

Dimensions (GPS)

Approx. 30 x 89 mm / 0.9 x 2.9 in.

Max. Roof Thickness (GPS)

2.5 mm or 3.5 - 7.5 mm / 0.10 in. or 0.14 - 0.30 in.

Colour (GPS)

Black

Polarisation (GPS)

RHCP

Impedance (GPS)

50 Ω

Materials (GPS)

Cu-nite brass
Stainless steel
Reinforced thermoplastic

Ordering Designations

Model	Product No.	Description
GPS-C 4/2/TETRA-S BBMU	132000084	Max. Roof thickness 2.5 mm
GPS-C 4/2/TETRA-S BBMU/7mm	132000096	Roof thickness : 3.5 - 7.5 mm

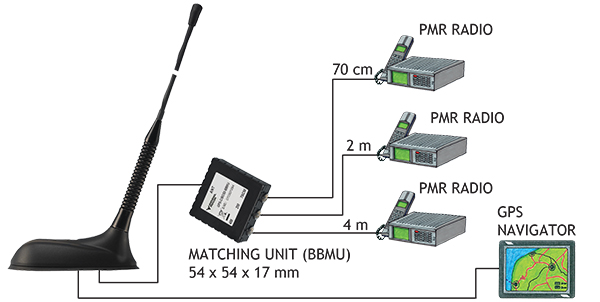

Connection Diagram

Mounting Instructions

Do not use sealer on rubber gasket or other places.

Cable Mounting

Typical Response curves

Vertical Radiation Pattern

Please Note

The cable between the GPS-C Mount and BBMU box must not be extended.

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C 4/2/TETRA-S BBMU/... is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GPS-C-1.pdf
