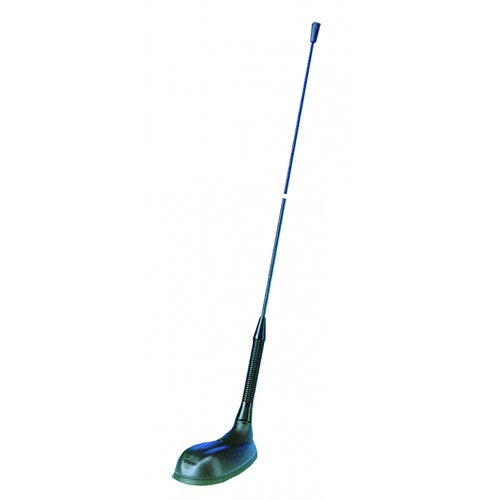

GPS Combination AntennasGPS-C 2R/70/FM

GPS Antenna with Whip with Shock Spring for the 160 MHz, 450 MHz and FM Bands

Description

External antenna whip mounted on the GPS-Combi mount.
- Black-chromed, conical stainless steel whip.
- Sturdy, general-purpose ¼ λ antenna in professional quality.
- Easily removable whip for cleaning in car-washing machine.
GPS-antenna for fixed installations.
- Full hemispherical coverage.
- Built-in high gain, low noise amplifier.
- Right-Hand Circularly Polarized antenna (RHCP).
- 5 V supply voltage (3 V respectively 12 V available on request).
- DC supply via RF-connector.
When ordering the antenna, please state the centre frequency on each band.

Specifications

Electrical

Model

GPS-C 2R/70/FM

Frequency

2 m: 145 MHz
70 cm: 435 MHz
FM band: 88-108 MHz

Antenna Type

Mobile antenna

Max. Input Power

25 W

Polarisation

Vertical

Impedance

50 Ω

VSWR	< 1.3:1 @ f. res.

Bandwidth

2 m: 20 MHz
70 cm: 40 MHz @ VSWR ≤ 2.0

Mechanical

Materials

Whip: Black-chromed, conical stainless steel
Black-chromed brass
Mount: Weather- and shockproof plastics
Black-chromed brass

Colour

Black

Height

492 mm / 19.37 in.

Weight

0.05 kg / 0.11 lb.

Mounting

On the GPS-Combi mount

GPS Antenna

P1dB (GPS Amplifier)

Approx. 7 dBm

Coverage (GPS)

Hemispherical

Gain (GPS)

28 dBic in axial direction (typ.)

Connection(s) (GPS)

FME(m) (male for GPS) +
FME(f) (female for mobile antenna)

Mounting (GPS)

ø18.0 mm dia. hole for roof thickness up to 2.0 mm
ø18.5 mm dia. hole for roof thickness 2.0 - 2.5 mm
Tools for mounting included

Antenna Type (GPS)

Active patch antenna

Noise Figure (GPS Amplifier)

< 1 dB (typ.)

Cross Polar Discrimination (GPS)

> 10 dB (typ.)

Gain (GPS Amplifier)

> 30 dB (typ.)

VSWR (GPS Amplifier)

< 2.0:1

Selectivity (GPS)

> 45 dB down @ ± 45 MHz

Frequency (GPS)

1575 MHz

Weight (GPS)

Approx. 0.114 kg / 0.25 lb.

Power Supply (GPS)

5 ± 0.5 V DC (3 V resp. 12 V on request)

Current Consumption (GPS Amplifier)

25 mA

Dimensions (GPS)

Approx. 30 x 89 mm / 0.9 x 2.9 in.

Max. Roof Thickness (GPS)

2.5 mm / 0.10 in.

Colour (GPS)

Black

Polarisation (GPS)

RHCP

Impedance (GPS)

50 Ω

Materials (GPS)

Cu-nite brass, Stainless steel, Reinforced thermoplastic

Ordering Designations

Model	Product No.
GPS-C 2R/70/FM	132000061
Accessories
LH 108/136-2G (optional)	200000762
DIPX 225/330-FME (optional)	200000670

Connection Diagram

Mounting Instructions

Do not use sealer on rubber gasket or other places.

Cable Mounting

Typical response curves

Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C 2R/70/FM is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GPS-C-1.pdf
