GPS AntennasGPS 2000 - Discontinued and replaced by the GNSS 2000

Active Receiving Antenna for the 1575 MHz NAVSTAR GPS Satellite Navigational System for Maritime and Landmobile Use

Description

Flat-pack GPS-antenna for fixed installations.
Full hemispherical coverage.
Built-in high-gain, low-noise amplifier.
Right-hand circular polarization (RHCP).
Available in black or white, see model survey.
5 V or 3 V supply voltage (12 V available on request).
DC supply via RF-connector.
EMC tested to IEC 801 and IEC 255.
Provided with FME-male, TNC-female connector, or models with permanently attached 0.15 m cable with FME-male connector, see model survey.
ECE R118.02 approved cable.
Wide range of FME-accessories available.

Specifications

Electrical

Model

GPS 2000

Frequency

1575 MHz

Antenna Type

Active patch antenna

Polarisation

Circular

Pattern Type

Hemispherical

Impedance

50 Ω

Axial Gain

28 dBi (typ.)

Cross Polar Attenuation

> 10 dB (typ.)

Selectivity

> 45 dB down @ ±45 MHz

Mechanical

Compliance

ECE R118.02 approved cable

Connection(s)

FME male, TNC female or models with 0.15 m RG 316 permanently attached cable with FME (male) connector, see ordering designations

Materials

Cu-nite brass, seawater resistant
Lexan

Installation Torque

8.5 ±1 Nm

Colour

Black or white, see ordering designations

Dimensions

55 mm dia.

Height

16 mm / 0.63 in.
Outer height:
26.5 mm / 1.04 in. total (FME)
38 mm / 1.50 in. total (TNC)
27 mm / 1.22 in. total for P0.15 models

Weight

Approx. 0.12 kg / 0.26 lb.

Mounting

14 mm / 0.55 in. dia. hole

Mounting Plate Thickness

0.7 - 4.5 mm / 0.03 - 0.18 in.

GPS Antenna

P1dB (GPS Amplifier)

Approx. +7 dBm

Noise Figure (GPS Amplifier)

< 1 dB (typ.)

Gain (GPS Amplifier)

> 30 dB (typ.)

VSWR (GPS Amplifier)

< 2.0:1

Current Consumption (GPS Amplifier)

0.02 mA

Environmental

Operating temperature range

-50 °C to +70 °C

Power Supply

Voltage

5 ± 0.5 V DC or 3 ± 0.3 V DC
(12 V available on request)

Ordering Designations

Model	Product No.	Description
GPS 2000B-FME-5V	112000026	Black
GPS 2000B-FME-3V	112000029	Black
GPS 2000W-FME-5V	112000024	White
GPS 2000W-FME-3V	112000023	White
GPS 2000B-TNC-5V	112000028	Black
GPS 2000B-TNC-3V	112000032	Black
GPS 2000W-TNC-5V	112000027	White
GPS 2000W-TNC-3V	112000019	White
GPS 2000B-P0.15-5V	112000072	Black
GPS 2000B-P0.15-3V	112000074	Black
GPS 2000W-P0.15-5V	112000071	White
GPS 2000W-P0.15-3V	112000073	White
Accessories FME-Cables
1 m FME	130000437
2 m FME	130000447
3 m FME	130000457
4 m FME	130000466
5 m FME	130000474
6 m FME	130000483
1 m FME-EFME	130000526
2 m FME-EFME	130000527
3 m FME-EFME	130000528
4 m FME-EFME	130000529
5 m FME-EFME	130000530
6 m FME-EFME	130000531
4 m FME-white	110000064
6 m FME-white	110000066
12 m FME-white	110000068
18 m FME-white	110000069
Accessories FME-Connectors
FME-FME	130000583
FME-P (Prolongation)	130000565
FME-N	130000571
FME-FSMA (Female-SMA)	130000578
FME-BNC	130000566
FME-TNC	130000569
FME-UHF	130000572
FME-MUHF (Mini-UHF)	130000573
FME-EMUHF (Elbow-MUHF)	130000582
FME-EBNC (Elbow-BNC)	130000580
FME-ETNC (Elbow-TNC)	130000581
FME-SMA	130000577
MFME-MSMC	130001573

FME-System Accessories - Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

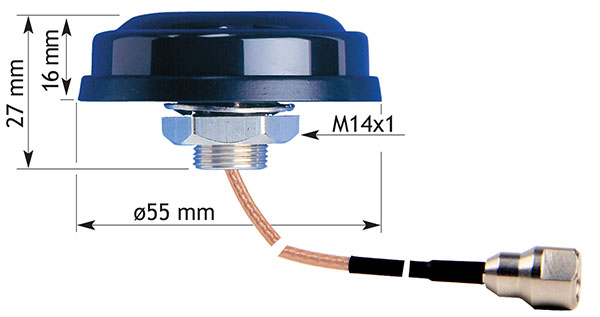

GPS 2000B-P0.15 and GPS 2000W-P0.15

FME-Version

TNC-Version

Models with permanently atteched cable

Mounting

The gasket should be entirely supported by the mounting plane.

Do not use sealer on rubber gasket or other places.

Accessories

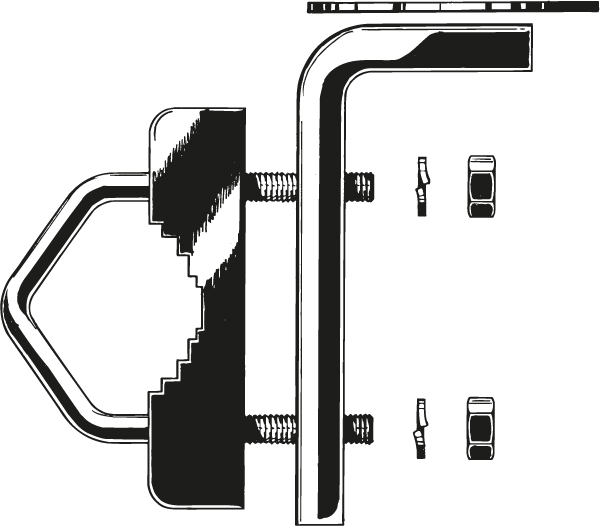

Stainless steel angle bracket for fixation of GPS 2000... antennas. (To be ordered separately: MB 2000 clamp). Not recommended for GPS 2000...-P0.15 types.

Typical response curves

Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS 2000 is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

http://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GPS2000.pdf
