Whip AntennasDHX 27 5/8-KFZ

Log.-periodic “5/8” Helical Mobile Antenna for the 27 MHz CB-Band

Description

0.9 m high top-quality antenna with high efficiency.
Stainless steel Z-mount with ball-joint and wing screw whip-fastening system.
Despite the very small physical dimensions, the toploading and the log.-periodicdistance between the helical windings yield exceptionally good performance.
Simple mounting with access from the outside only.
Choice between two connection principles:
- Z-mount : FME-connection (FME-cable to be ordered separately).
- ZP4-mount : Permanently attached 4 m RG 58 cable terminated with FME-connector.

Specifications

Electrical

Model

DHX 27 5/8-KFZ

Frequency

27 MHz CB-band

Antenna Type

Log.-periodically wound helical mobile antenna

Max. Input Power

200 W

Polarisation

Vertical

Impedance

50 Ω

Mechanical

Materials

Whip : Copper-wire wound on glass fiber, covered by polyethylene
Chromed brass
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel

Installation Torque

7.5 ± 1 Nm

Colour

Black / Metallic Silver

Height

Approx. 900 mm / 35.43 in.

Weight

Z-mount : Approx. 0.21 kg / 0.46 lb.
ZP4-mount: Approx. 0.37 kg / 0.82 lb.

Mounting

21 mm dia. hole (For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22 mm dia.)

Mounting Plate Thickness

Max. 2.0 mm (Models up to 7.5 mm on request)

Ordering Designations

Model	Product No.	Description
DHX 27 5/8-KFZ	130000593	Z-mount with FME-system
DHX 27 5/8-KFZP4	130000594	ZP4-mount with 4 m cable and FME connector

Installation

This antenna is supplied with type Z-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The Z-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside. However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.

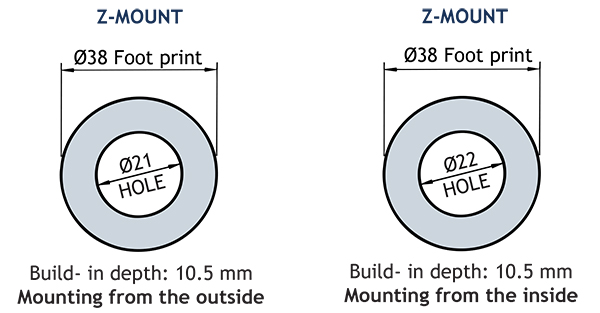

1. Installation Dimensions

2. Installation Steps

Do not use sealer on rubber gasket or other places.

The whip is compatible with all below mounts

3.Tuning

The antenna must be tuned using VSWR-meter. Unfasten the union nut at the top end of the whip and pull out the adjusting pin approx. 1 cm at a time until best possible VSWR is obtained. Re-fasten the union nut thoroughly.
