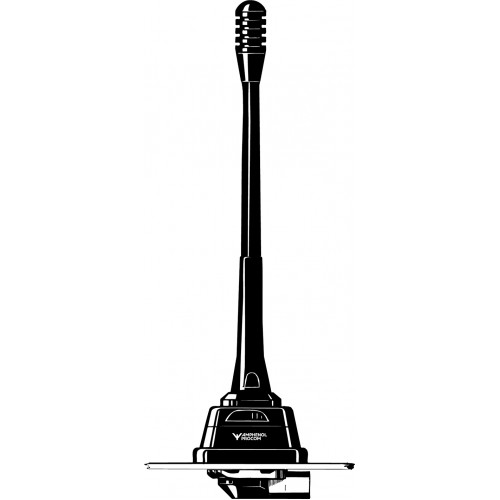

- Ready-tuned and unity gain on both bands.
- Stainless steel ZG-mount with M8-thread whip-fastening system.
- This antenna makes it possible to:
- operate 450 MHz and 900 MHz transceivers alternately on the same antenna
- operate two transceivers (450 and 900 MHz) at the same time on one antenna using a diplexer
- (type DIPX 500/800 – to be ordered separately)
- operate a dual-frequency transceiver (450 and 900 MHz) on one antenna (diplexer not required).
- Simple mounting exclusively with access from the outside.
- Choice between two connection principles:
- ZG-mount : FME-connection (supplied without cable).
- ZGP4-mount : Permanently attached 4 m cable terminated with FME-connector.
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
Ordering Designations
| Model | Product No. | |
|---|---|---|
| DFA 450/900-ZG/… | 130001491 | |
| DFA 450/900-ZGP4/… | 130001119 |
FME-System Accessories
| FME-CABLES | |
|---|---|
| LENGTH | TYPE NO. |
| 1 m | 1 m FME |
| 2 m | 2 m FME |
| 3 m | 3 m FME |
| 4 m | 4 m FME |
| 5 m | 5 m FME |
| 6 m | 6 m FME |
| 4 m white | 4 m FME-white |
| 6 m white | 6 m FME-white |
| 12 m white | 12 m FME-white |
| 18 m white | 18 m FME-white |
For further information about other types of FME-cables please compare the cable data sheets under accessories in our catalogue.
| FME-CONNECTORS | |
|---|---|
| CONNECTOR | ORDER NO. |
| FME-FME | FME-FME |
| Prolongation | FMEP |
| N | FME-N |
| FSMA | FME-FSMA |
| BNC | FME-BNC |
| TNC | FME.TNC |
| UHF | FME-UHF |
| Mini-UHF | FME-MUHF |
| Elbow-MUHF | FME-EMUHF |
| Elbow-BNC | FME-EBNC |
| Elbow-TNC | FME-ETNC |
| SMA | FME-SMA |
Installation
The ZG-mount is designed for mounting in a 21 mm dia. hole on horizontal surfaces as e.g. roof top or trunk lid, with access from the outside only.
A good contact surface on the inside of the car body must always be ensured, thus enabling the base plate to get in direct contact with the metal parts of the car, which is of utmost importance for proper performance of the antenna.
The ZG-mount is provided with an M8 x 1 thread mount system. This construction meets the demand for a low profile mobile mount with a slim appearance and with protection against theft of the antenna whip.
When cleaning the car in car-washing machines, the whip is easily removed using a fork spanner. The whip is refitted again by screwing it onto the thread stud and tightening it with the spanner.
1. Installation Dimension
2. Installation Steps
Do not use sealer on rubber gasket or other places.
3. Operation using a Diplexer
Several advantages are gained by using only one antenna. Only one single hole has to be drilled into the car body, only one cable installation has to be run, the car appearance is not destroyed by carrying several whips and also, it may be a particular demand that it should not be too obvious to see that the car is equipped with transceiving equipment.

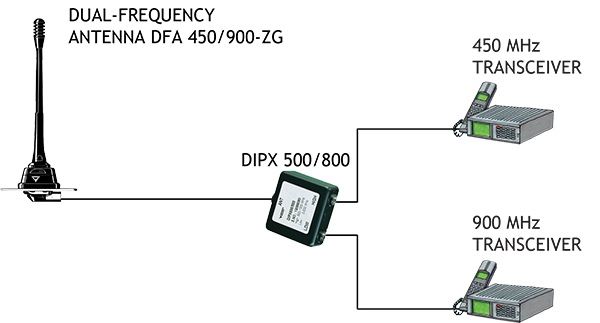

In case of operating two transceivers on one antenna at the same time, a diplexer, type DIPX 500/800, is necessary to complete the system. (See the coupling diagram below). The tasks of the diplexer are to protect the two receiver inputs from being destroyed by the transmitter in the contrary band, and to ensure a low-loss path between the transceiver and the antenna, which is not loaded by the other branch. For further details please see the separate data sheet on the DIPX 500/800. The diplexer fully covers both bands and, consequently, tuning to specific frequencies is not required.
Connection Diagram
The whip is compatible with all below mounts
Please Note
When ordering, the operating frequencies in both bands must be stated. In case of duplex operation please specify Tx and Rx frequencies. In case of application for CELLULAR systems please state names of CELLULAR networks.
