Mobile MountsGPS-COMBI MOUNT

GPS mount for GPS Antennas for Other Frequencies

Description

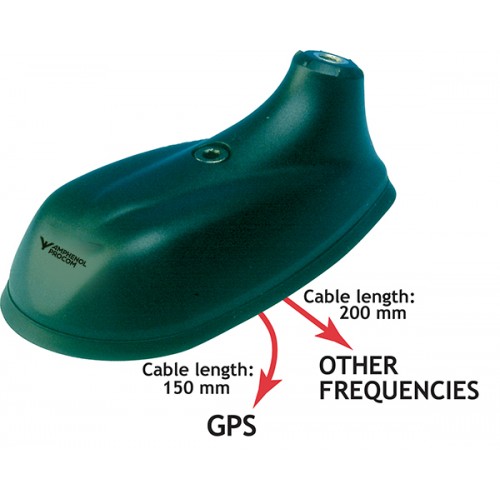

GPS-antenna for fixed installations.
External antenna whip mounted on the GPS-Combi mount.
Full hemispherical coverage.
Built-in high-gain, low-noise amplifier.
Right-Hand Circular Polarization (RHCP).
5 V supply voltage (3 V respectively 12 V available on request).
DC supply via RF-connector.
Tools for mounting included.
ECE R118.02 approved cable.

Specifications

Electrical

Model

GPS-COMBI MOUNT

Frequency

1575 MHz

Antenna Type

Active patch antenna

Polarisation

Circular

Impedance

50 Ω

Coverage

Hemispherical

Gain	28 dBic in axial direction (typ.)

Cross Polar Attenuation

> 10 dB (typ.)

Selectivity

> 45 dB down @ ± 45 MHz

Mechanical

Compliance

ECE R118.02 approved cable

GPS Antenna

P1dB (GPS Amplifier)

Approx. 7 dBm

Connection(s) (GPS)

FME(m) (male for GPS) +
FME(f) (female for mobile antenna)

Mounting (GPS)

ø18.0 mm dia. hole for roof thickness up to 2.0 mm
ø18.5 mm dia. hole for roof thickness 2.0 - 2.5 mm
Tools for mounting included

Noise Figure (GPS Amplifier)

< 1 dB (typ.)

Gain (GPS Amplifier)

> 30 dB (typ.)

VSWR (GPS Amplifier)

< 2.0:1

Operating Temperature Range (GPS)

-35 °C to +75 °C

Installation Torque (GPS)

4 ± 0.5 Nm

Weight (GPS)

Approx. 0.114 kg / 0.25 lb.

Power Supply (GPS)

5 ± 0.5 V DC (3 V resp. 12 V on request)

Current Consumption (GPS Amplifier)

0.025 mA

Dimensions (GPS)

Approx. 30 x 89 mm / 0.9 x 2.9 in.

Max. Roof Thickness (GPS)

2.5 mm / 0.10 in.

Colour (GPS)

Black

Materials (GPS)

Cu-nite brass
Stainless steel
Reinforced thermoplastic

Ordering Designations

Model	Product No.
GPS-COMBI MOUNT	132000003

Whip examples

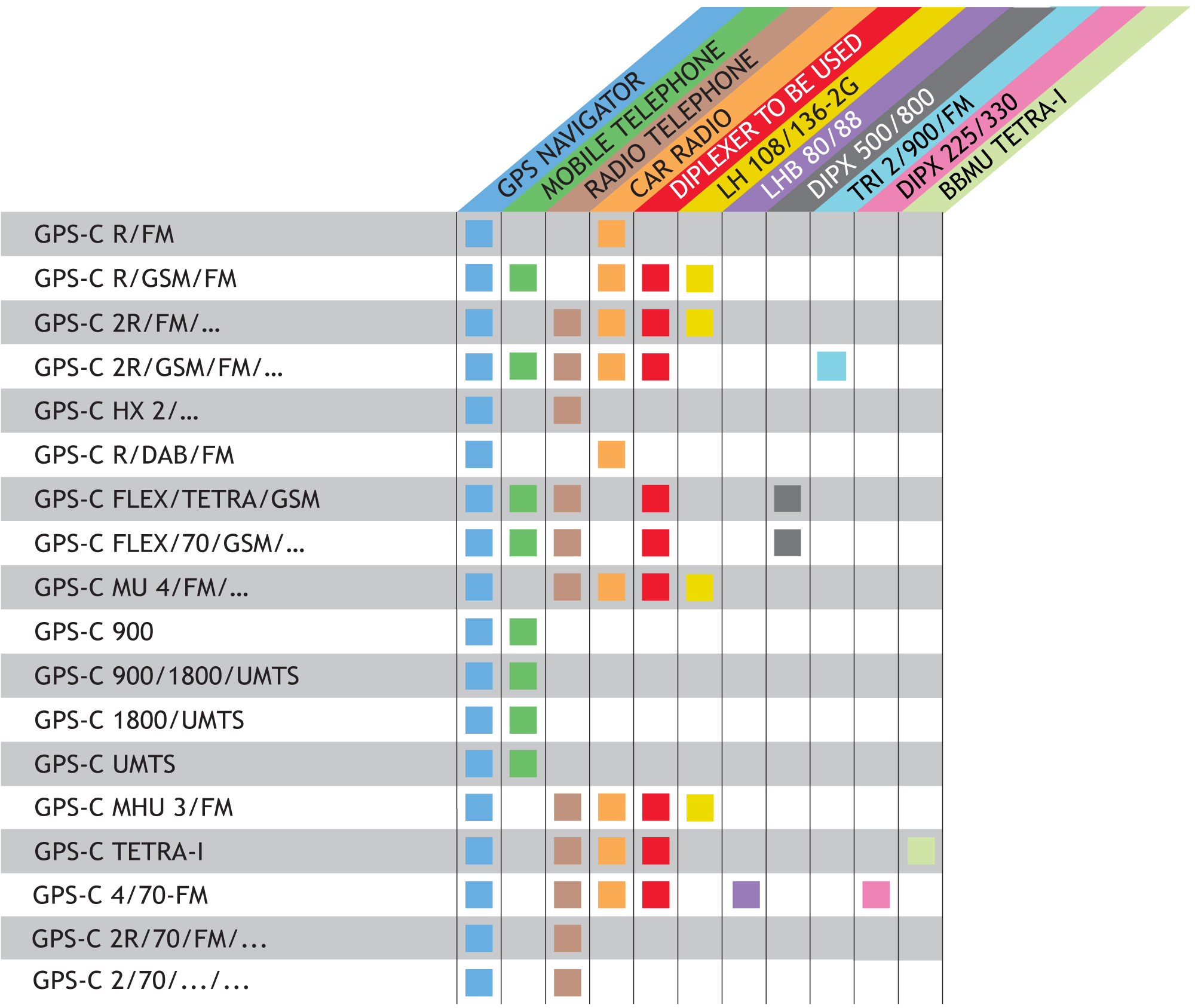

See back of this page for complete application survey of Procom's wide range of GPS-C models.

Tool

Mounting Details

Mounting Instructions

Do not use sealer on rubber gasket or other places.

Installation

The various GPS-Combimodels can be connected to the following devices:

Typical Response Cures

Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-Combi Mount is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GPS-COMBI-MOUNT.pdf
