DM 1010

DanmikeDM 1010

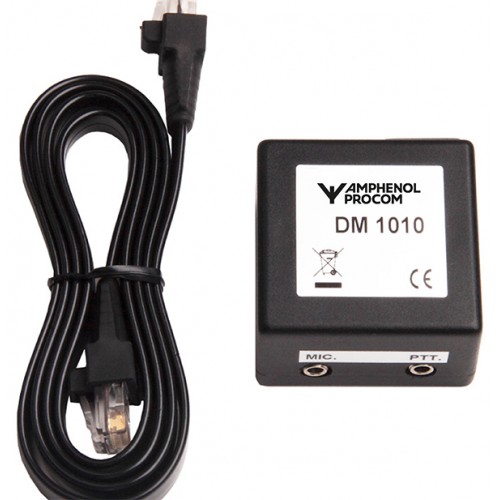

Hands-Free for ICOM Mobile Radios

Description

  • Amplifier for Hands-free microphone specially designed for ICOM.
  • Fits all ICOM mobile radios with Modular-8 microphone connector.
  • Complete with Modular-8 cable for direct connection to the microphone connector.
  • 2 pcs. 3.5 mm jacks for microphone and external PTT switch.
  • Fits electret condenser hands-free microphones like DM 6600 F or DM 8300 F.
  • Field-adjustable gain.
  • Available in 2 versions:
    • DM 1010, gain 10 - 40 dB, optimized for low-output microphones like DM 8300 F.
    • DM 1010-20 dB, gain 3 - 20 dB, optimized for high-output microphones like DM 6600 F.
  • EMC-protected.
  • Powered from the microphone phantom voltage.

Specifications

Electrical
Model DM 1010
Type Hands-free microphone with amplifier
Amp. Gain DM 1010 : Nominally 30 dB, Adjustable 10 → 40 dB (±3 dB) at 1 kHz
DM1010-20 dB : Nominally 10 dB, Adjustable 3 → 20 dB (±3 dB) at 1 kHz
Impedance 600 Ω
Frequency Response 0.2 ±17 kHz (Shown in diagram below)
Power Supply 8 V DC (from the radio)
Current Consumption Approx. 2 mA
Mechanical
Cartridge Type Electret
Connection(s) Modular 8 plug and 3.5 mm jacks
Materials ABS
Cable 1-wire with 2 Modular 8 plugs
Dimensions 30 x 50 x 50 mm /
1.18 x 1.97 x 1.97 in.
Environmental
Operating temperature range -30 °C to +70 °C
Storage temperature range -40 °C to +80 °C

Ordering Designations

Model Product No.
DM 1010 270000072
DM 1010-20 dB 270000115

Typical response curve

DM 1010 freq

Wire Diagram

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type DM 1010 is in compliance with EU Directive 2014/30/EU and
the UK Electromagnetic Compatibility 2016 (S.I. 2016 No. 1091).
The full text of the Declaration of Conformity is available at:

http://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-DM1010.pdf
