Whip AntennasMU 4-ZP5/380..430 MHz

Colinear 4 dB Mobile Antenna for the 400 MHz Band

Description

4 dB mobile antenna with colinear, stainless steel whip with toggle joint.
The mount is as standard factory fitted with 5 m RG58 Low-Loss cable and provided with FME-connector.

Specifications

Electrical

Model

MU 4-ZP5/380..430 MHz

Frequency

380 - 430 MHz

Antenna Type

Collinear stainless steel mobile whip antenna

Max. Input Power

50 W

Polarisation

Vertical

Impedance

50 Ω

VSWR	≤ 1.3 @ f. res.

Bandwidth

> 50 MHz @ VSWR ≤ 2.0:1

Gain (EIA RS-329-1)

4 dB

Mechanical

Materials

Whip : Stainless steel and brass, bright polished/chromed
Mount : Bright Chromed brass
Weather- and shockproof plastics
Stainless steel

Cable

5 m cable terminated with FME-connector

Installation Torque

7.5 ± 1 Nm

Colour

Metallic Silver

Height

Approx. 66 mm / 2.60 in.

Weight

Approx. 0.43 kg / 0.95 lb.

Mounting

21 mm dia. hole
(For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22 mm dia.)

Mounting Plate Thickness

Max. 2.0 mm
(Models up to 7.5 mm on request)

Ordering Designations

Model	Product No.	Frequency
MU 4-ZP5/380..430 MHz	130002315	380 - 430 MHz

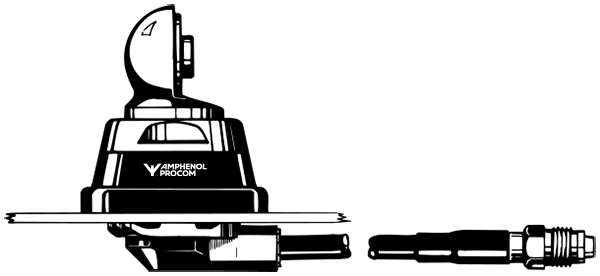

ZP5-Mounts

Installation

The antenna whip comprises a ¼ λ section, a phase shifting coil, and a ½ λ section. The whip is fastened to the mount by means of our standard ball joint and wing screw system.
The adjustable ball joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The Z-mount is particularly well suited for mounting on car roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside.

However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.

1. Installation Dimensions

2. Installation Steps

Do not use sealer on rubber gasket or other places.

3. Tuning

Factory tuned for 405 MHz.

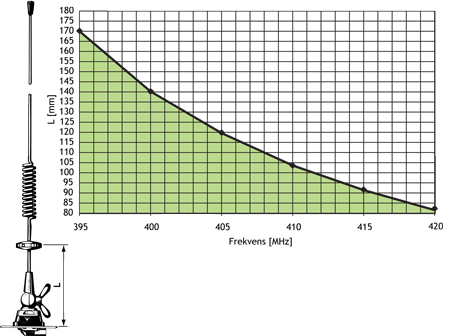

For optimizing VSWR in the band from 395 - 420 MHz, you can use the diagram as a guide for the position of the adjusting disc. (use a instrument).

Hat screw option: By adding a K to the antenna designation the antenna is delivered with hat screw and key instead of wing screw.

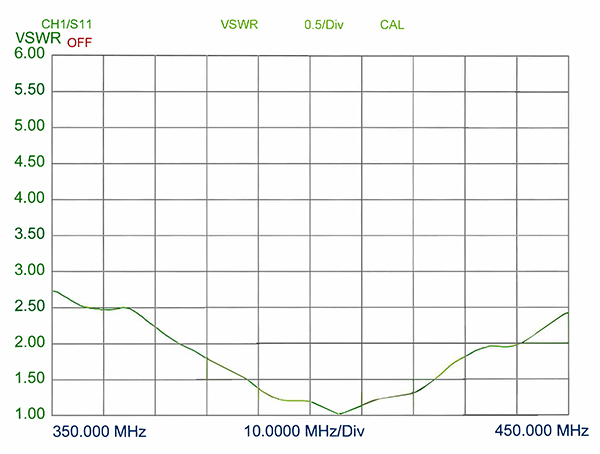

Typical VSWR curve @ f.res 405 MHz
