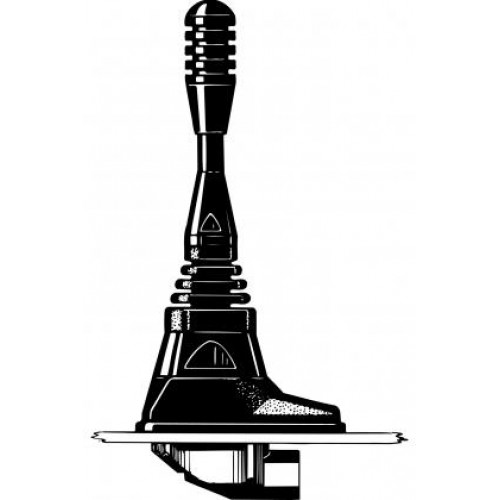

- Silicone covered flexible steel wire whip.
- Type MU 907-X/l covers 820 – 905 MHz (e.g. for EAMPS).
- Type MU 907-X/h covers 870 – 960 MHz (e.g. for ETACS, NMT-900 and EGSM).
- Stainless steel X-mount with M6-thread whip-fastening system.
- Simple mounting exclusively with access from the outside.

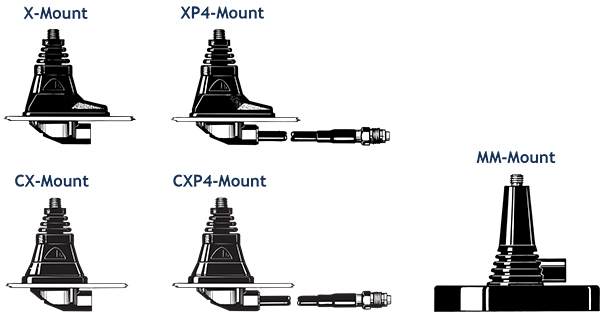

- Models available with X-mount (oblong), CX-mount (circular) and MM-mount (magnetic).
- Choice between two connection principles:
- X-mount, MM-mount: FME-connection (supplied without cable).
- XP4-mount: Permanently attached 4 m low loss cable terminated with FME-connector.
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
Ordering Designations
| Model | Product No. | Description | Frequency | |
|---|---|---|---|---|
| MU 907-X/l | 130001210 | X-mount (oblong) with FME-system | 820 - 905 MHz | |
| MU 907-X/h | 130001206 | Same mount as above | 870 - 960 MHz | |
| MU 907-CX/l | 130001211 | CX-mount (circular) with FME-system | 820 - 905 MHz | |
| MU 907-CX/h | 130001207 | Same mount as above | 870 - 960 MHz | |
| MU 907-XP4/l | 130001212 | XP4-mount (oblong) with 4 m cable + FME-system | 820 - 905 MHz | |
| MU 907-XP4/h | 130001208 | Same mount as above | 870 - 960 MHz | |
| MU 907-CXP4/l | 130001213 | CXP4-mount (circular) with 4 m cable + FME-system | 820 - 905 MHz | |
| MU 907-CXP4/h | 130001209 | Same mount as above | 870 - 960 MHz | |
| MU 907-MM/l | 130001214 | MM-mount (magnetic) with FME-system | 820 - 905 MHz | |
| MU 907-MM/h | 130001215 | Same mount as above | 870 - 960 MHz |
Installation
This antenna should be mounted on the car roof to ensure best omnidirectional coverage. Mounting can take place exclusively with access from the outside when drilling an 18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the bottom plastic ring of the packing gasket with a sharp cutter.
When cleaning the car in car-washing machines, remove the whip using a spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the spanner.
The MiniMag (abbreviated: MM) is a small, light-weight magnetic mount with a high attaching effect. A silicone layer applied to the contact surface protects the car roof and ensures maximum friction.

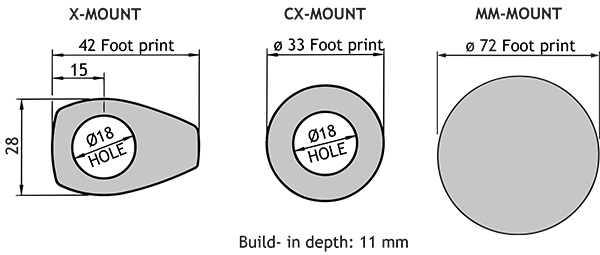

1. Installation Dimension
2. Installation Steps
Do not use sealer on rubber gasket or other places.
3. Tuning
The antenna is delivered factory-tuned and requires no further tuning.
Please Note
For safety reasons:
1. When using the MU 907-MM/…, car speed must not exceed 140 km/h.
2. If operating the MM-mount with other whips, whip length must never exceed 320 mm, and utilizing this maximum length, car speed must not exceed 115 km/h.
Ordering Note
To help selecting the correct model for a specific cellular network please consult the survey of cellular network frequencies under USEFUL DATA in our catalogues.
The whip is compatible with all below mounts
