MU 4-X/..., MU 4-CX/..., MU 4-XG/..., MU 4-MM/...

Whip AntennasMU 4-X/..., MU 4-CX/..., MU 4-XG/..., MU 4-MM/...

Colinear 4 dB Mobile Antenna for the 450 MHz Band

Description

  • 4 dB mobile antenna with colinear, stainless steel whip.
  • Stainless steel X-mount with M6-thread whip-fastening system.
  • Models available with X-mount (oblong), CX-mount (circular), XG-Combi mount (oblong) with GPS and MM-mount (magnetic).
  • Choice between mounts with FME-connection (without cable) or models with permanently attached 4 m cable with FME connector.
  • Choose between general purpose tunable models and permanently tuned models for cellular systems.
  • Easily removable whip for car wash.
  • GPS-antenna for fixed installations.
    • Full hemispherical coverage.
    • Built-in high-gain, low-noise amplifier.
    • Right-Hand Circular Polarization (RHCP).
    • 2.85 V - 5 V supply voltage (typical 3 V).

Specifications

Electrical
Model MU 4-X/..., MU 4-CX/..., MU 4-XG/..., MU 4-MM/...
Frequency Models within 380 - 470 MHz
Antenna Type Collinear stainless steel mobile whip antenna
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3:1 @ f. res.
Bandwidth > 15 MHz @ VSWR < 1.5
> 30 MHz @ VSWR < 2.5
Gain (EIA RS-329-1) 4 dB
Mechanical
Materials Whip: Black-chromed stainless steel
Black-chromed brass
Mount: Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 4 ±1 Nm
Colour Black
Height Approx. 590 mm / 23.23 in. (dep. of freq.)
Weight X-version : Approx. 120 g / 0.26 lb.
XP4-version : Approx. 290 g / 0.64 lb.
CX-version : Approx. 155 g / 0.34 lb.
CXP4-version: Approx. 290 g / 0.64 lb.
XG-version : Approx. 170 g / 0.37 lb.
XGP4-version : Approx. 310 g / 0.68 lb.
MM-version : Approx. 380 g / 0.84 lb.

Ordering Designations

Model Product No. Description Frequency
MU 4-X/s 130000952 X-mount (oblong) with FME 380 - 410 MHz
MU 4-X/f 130000922 X-mount (oblong) with FME 406 - 430 MHz
MU 4-X/l 130000933 X-mount (oblong) with FME 420...450 MHz
MU 4-X/h 130000927 X-mount (oblong) with FME 440...470 MHz
MU 4-X/CEL1 130000942 X-mount (oblong) with FME 450 - 470 MHz
MU 4-X/CEL2 130000941 X-mount (oblong) with FME 440 - 455 MHz
MU 4-X/CEL3 130000944 X-mount (oblong) with FME 425 - 440 MHz
MU 4-X/CEL4 130000951 X-mount (oblong) with FME 414 - 430 MHz
MU 4-X/CEL5 130001610 X-mount (oblong) with FME 380 - 410 MHz
MU 4-CX/s 130000953 CX-mount (circular) with FME 380...410 MHz
MU 4-CX/f 130000923 CX-mount (circular) with FME 406...430 MHz
MU 4-CX/l 130000934 CX-mount (circular) with FME 420...450 MHz
MU 4-CX/h 130000928 CX-mount (circular) with FME 440...470 MHz
MU 4-CX/CEL5 130001612 CX-mount (circular) with FME 380 - 410 MHz
MU 4-CX/CEL4 130000937 CX-mount (circular) with FME 414 - 430 MHz
MU 4-CX/CEL3 130000940 CX-mount (circular) with FME 425 - 440 MHz
MU 4-CX/CEL2 130000938 CX-mount (circular) with FME 440 - 455 MHz
MU 4-CX/CEL1 130000943 CX-mount (circular) with FME 450 - 470 MHz
MU 4-XP4/s 130000954 XP4-mount (oblong) with 4 m cable and FME-connector 380...410 MHz
MU 4-XP4/f 130000924 XP4-mount (oblong) with 4 m cable and FME-connector 406...430 MHz
MU 4-XP4/l 130000935 XP4-mount (oblong) with 4 m cable and FME-connector 420...450 MHz
MU 4-XP4/h 130000929 XP4-mount (oblong) with 4 m cable and FME-connector 440...470 MHz
MU 4-XP4/CEL5 130001611 XP4-mount (oblong) with 4 m cable and FME-connector 380 - 410 MHz
MU 4-XP4/CEL4 130000950 XP4-mount (oblong) with 4 m cable and FME-connector 414 - 430 MHz
MU 4-XP4/CEL3 130001474 XP4-mount (oblong) with 4 m cable and FME-connector 425 - 440 MHz
MU 4-XP4/CEL2 130000947 XP4-mount (oblong) with 4 m cable and FME-connector 440 - 455 MHz
MU 4-XP4/CEL1 130000945 XP4-mount (oblong) with 4 m cable and FME-connector 450 - 470 MHz
MU 4-CXP4/s 130000955 CXP4-mount (circular) with 4 m cable and FME-connector 380...410 MHz
MU 4-CXP4/f 130000925 CXP4-mount (circular) with 4 m cable and FME-connector 406...430 MHz
MU 4-CXP4/l 130000936 CXP4-mount (circular) with 4 m cable and FME-connector 420...450 MHz
MU 4-CXP4/h 130000930 CXP4-mount (circular) with 4 m cable and FME-connector 440...470 MHz
MU 4-CXP4/ CEL5 130001613 CXP4-mount (circular) with 4 m cable and FME-connector 380 - 410 MHz
MU 4-CXP4/CEL4 130000949 CXP4-mount (circular) with 4 m cable and FME-connector 414 - 430 MHz
MU 4-CXP4/CEL3 130000948 CXP4-mount (circular) with 4 m cable and FME-connector 425 - 440 MHz
MU 4-CXP4/CEL2 130000939 CXP4-mount (circular) with 4 m cable and FME-connector 440 - 455 MHz
MU 4-CXP4/CEL1 130000946 CXP4-mount (circular) with 4 m cable and FME-connector 450 - 470 MHz
MU 4-XG/s 130002033 XG-COMBI mount (oblong) with FME 380 - 410 MHz
MU 4-XG/f 130002034 XG-COMBI mount (oblong) with FME 406 - 430 MHz
MU 4-XG/l 130002093 XG-COMBI mount (oblong) with FME 420 - 450 MHz
MU 4-XG/h 130002094 XG-COMBI mount (oblong) with FME 440 - 470 MHz
MU 4-XG/CEL5 130002099 XG-COMBI mount (oblong) with FME 380 - 410 MHz
MU 4-XG/CEL4 130002098 XG-COMBI mount (oblong) with FME 414 - 430 MHz
MU 4-XG/CEL3 130002097 XG-COMBI mount (oblong) with FME 425 - 440 MHz
MU 4-XG/CEL2 130002096 XG-COMBI mount (oblong) with FME 440 - 455 MHz
MU 4-XG/CEL1 130002095 XG-COMBI mount (oblong) with FME 450 - 470 MHz
MU 4-XGP4/s 130002035 XGP4-COMBI mount (oblong) with 4 m cable and FME-conn. 380 - 410 MHz
MU 4-XGP4/f 130002036 XGP4-COMBI mount (oblong) with 4 m cable and FME-conn. 406 - 430 MHz
MU 4-XGP4/CEL2 130002101 XGP4-COMBI mount (oblong) with 4 m cable and FME-conn. 440 - 455 MHz
MU 4-XGP4/CEL1 130002100 XGP4-COMBI mount (oblong) with 4 m cable and FME-conn. 450 - 470 MHz
MU 4-MM/s 130000916 MM-mount with FME 380 - 410 MHz
MU 4-MM/f 130000909 MM-mount with FME 406 - 430 MHz
MU 4-MM/l 130000915 MM-mount with FME 420 - 450 MHz
MU 4-MM/h 130000914 MM-mount with FME 440 - 470 MHz
MU 4-MM/CEL5 130001614 MM-mount with FME 380 - 410 MHz
MU 4-MM/CEL4 130000912 MM-mount with FME 414 - 430 MHz
MU 4-MM/CEL3 130000911 MM-mount with FME 425 - 440 MHz
MU 4-MM/CEL2 130000910 MM-mount with FME 440 - 455 MHz
MU 4-MM/CEL1 130000913 MM-mount with FME 450 - 470 MHz

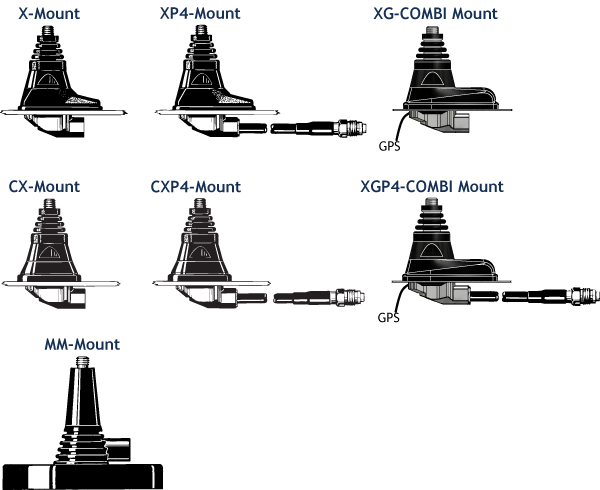

The whip is compatible with all below mounts

Installation and Assembly Instructions

Please refer to the data sheet of each individual mount to find the installation and assembly instructions.

Tuning

The diagrams apply to all models in the series



The diagrams apply to all models in the series

Please Note

For safety reasons: When using the MU 4-MM, car speed must not exceed 120 km/h.
