Whip AntennasMU 3-BZ

3 dB Gain ⅝ λ Mobile Antenna for the 450 MHz Band

Description

Black-chromed stainless steel whip with toggle joint.
Tunable by cutting in the range 400…470 MHz.
Stainless steel BZ-mount with ball-joint and wing screw whip-fastening system.
Simple mounting exclusively with access from the outside. Models with roof thickness from 2 mm to 7.5 mm mounting from the inside.
Choice between two connection principles:
- BZ-mount: FME-connection (supplied without cable).
- BZP4-mount: Permanently attached 4 m cable terminated with FME-connector.

Specifications

Electrical

Model

MU 3-BZ

Frequency

Tunable by cutting within : 400 - 470 MHz

Antenna Type

Mobile whip antenna

Max. Input Power

100 W

Polarisation

Vertical

Impedance

50 Ω

VSWR	< 1.3:1 @ f.res.

Bandwidth

≥ 12 MHz @ VSWR ≤ 1.5

Gain (EIA RS-329-1)

3 dB

Mechanical

Materials

Whip: Stainless steel, black-chromed
Black-chromed brass
Mount: Black-chromed brass
Weather- and shockproof plastics
Stainless steel

Installation Torque

7.5 ±1 Nm

Colour

Black

Height

Approx. 580 mm / 22.83 in.

Weight

BZ-version: Approx. 140 g
BZP4-version: Approx. 280 g

Mounting

21 mm dia. hole (For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22 mm dia.)

Mounting Plate Thickness

Max. 2.0 mm (Models up to 7.5 mm on request)

Ordering Designations

Model	Product No.	Description
MU 3-BZ	130000898	BZ-mount with FME-system
MU 3-BZP4	130000899	BZP4-mount with 4 m cable and FME-connector

The whip is compatible with all below mounts

Installation

This antenna is provided with type BZ-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The BZ-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The BZ-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside.

However, the antenna can be installed anywhere on the car, as the BZ-mount is equally well suited for mounting on e.g. trunk or wing.

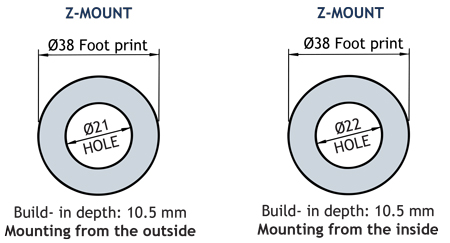

1. Installation Dimension

2. Installation Steps

Do not use sealer on rubber gasket or other places.

Please Note

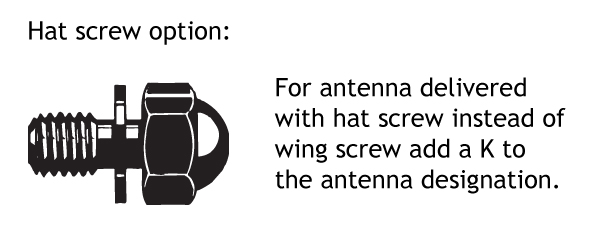

1. As standard the antenna is provided with wing screw. However, the wing screw may be replaced by the less obtrusive hat screw (with key), which also gives an improved protection against theft. To order the antenna with hat screw, please add a “K” to the antenna designation.

2.The antenna can be delivered factory-tuned to customer’s frequencies. Please consult our price list concerning additional charges for adjustment by cutting.

3. Tuning

The antenna should always be tuned using an VSWR-meter. The cutting diagram below serves as a guide for this procedure.
