Whip AntennasMU 1801-LX

0 dB Mobile Antenna for the 1800 MHz Band

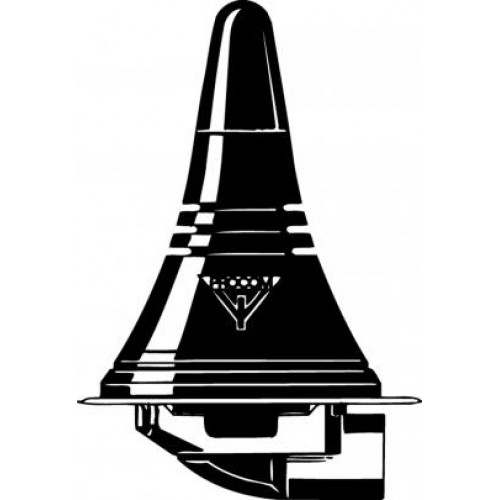

Description

Mobile antenna for the 1800 MHz cellular systems (DCS-1800/PCN).
Black-chromed whip in nice, discrete design.
Approx. 0 dB gain.
Stainless steel LX-mount – professional quality in elegant and smooth design.
Especially suited for roof-mounting.
Provided with FME-connection (supplied without cable).
Bendable section in mount for adjustment of whip (tiltable 15° by hand).
Installation with access from the outside only (requiring an 18 mm dia. hole).

Specifications

Electrical

Model

MU 1801-LX

Frequency

1800 MHz band (1700-1900 MHz)

Antenna Type

¼ λ mobile antenna

Max. Input Power

25 W

Polarisation

Vertical

Impedance

50 Ω

Gain (EIA RS-329-1)

0 dB

Mechanical

Materials

Whip:Black-chromed brass
Mount: Stainless steel
Cu-nite brass
Environment-proof plastics

Cable

FME-cable to be ordered separately

Installation Torque

3.5 Nm max.

Colour

Black

Height

Approx. 400 mm / 15.75 in.

Weight

Approx. 0.03 kg / 0.07 lb.

Mounting

18 mm dia. hole

Ordering Designations

Model	Product No.
MU 1801-LX	130001268

1. Installation Dimensions

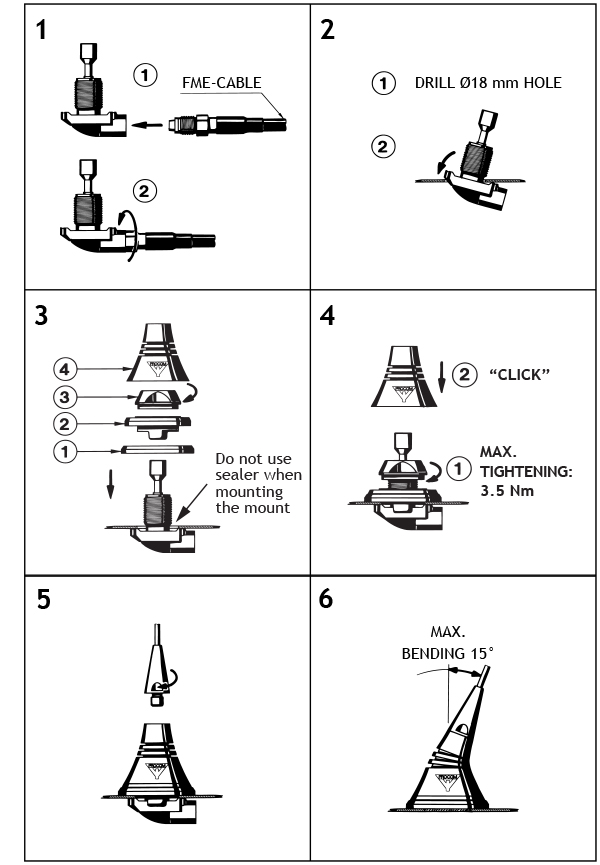

2. Installation Steps

3. Tuning

The antenna is delivered factory-tuned and requires no further tuning.

Procom A/S reserve the right to amend specifications without prior notice.

Installation

The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof to ensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only.

Please Note

When tightening the revolving nut (see picture 4), special care must betaken to keep the spanner in the correct position.
