GPS 4-Ex

GPS AntennasGPS 4-Ex

ATEX Certified GPS, Galileo, Glonass and BeiDou antenna for Mast Mounting in Hazardous areas

Description

  • Passive quadrifilar helix antenna for fixed installation.
  • Covering GPS, Galileo, Glonass and BeiDou.
  • The antenna is specified as ATEX antenna for use in zone 2 in potentially explosive areas.
  • The antenna is to be used as a receiver only.
  • Before installing the antenna, read the ATEX Product Manual carefully.
  • The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2.
  • Right-hand circularly polarized antenna (RHCP).
  • The circularly polarized antenna minimizes the fading effect often encountered in environments with reflecting obstacles.
  • Mounting bracket available to make the perfect installation for your specific needs.
  • All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • Maximum recommended cable loss between antenna and receiver is 9 dB (e.g. 20 m RG 58 A/U-XLL) for receivers with acquisition sensitivity of < - 142 dBm. Higher cable loss can be tolerated for receivers with lower acquisition sensitivity.

Specifications

Electrical
Model GPS 4-Ex
Frequency 1570 - 1650 MHz
Antenna Type Quadrifilar helix antenna
Max. Input Power Receiver only
Polarisation Circular
Pattern Type Hemispherical
Impedance 50 Ω
Gain 2 dBic (0 dBd)
VSWR < 2.0:1
Bandwidth 75 MHz
Antistatic Protection All metal parts DC-grounded
(Connector shows a DC-short)
Mechanical
Connection(s) N(f)
Materials Shroud : Polyrethane - Coated glass fiber
Mounting bracket : Stainless steel
Installation Torque Mounting bracket : 6.5 - 7 Nm
Colour Blue (RAL 5015)
Wind Area 0.0072 sq. m / 0.08 sq. ft
Wind Load Approx. 9.6 N @ 150 km/h / 93.2 mph.
Diameter 40 mm / 1.57 in.
Height Approx. 250 mm / 9.84 in.
Weight Approx. 0.45 kg / 0.99 lb.
Mounting Bracket SM-MAS
ATEX Marking II 3G Ex nA IIC T6
Environmental
Operating temperature range -30 °C to +60 °C
Survival Wind Speed 200 km/h / 124.3 mph.
Ingress Protection IP66

Diagram and Mounting

MOUNTING DETAILS

ASSEMBLY DRAWING

Ordering Designations

Model Product No.
GPS 4-Ex 115000029
Accessories
ATEX grounding kit 115000100
SM-MAS 110000196

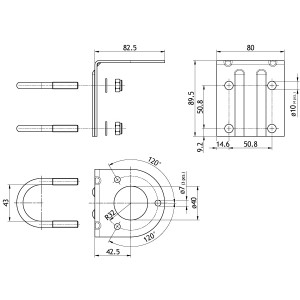

Mounting Details

SM MAS Holeplacing

All dimensions are given in mm [in.]

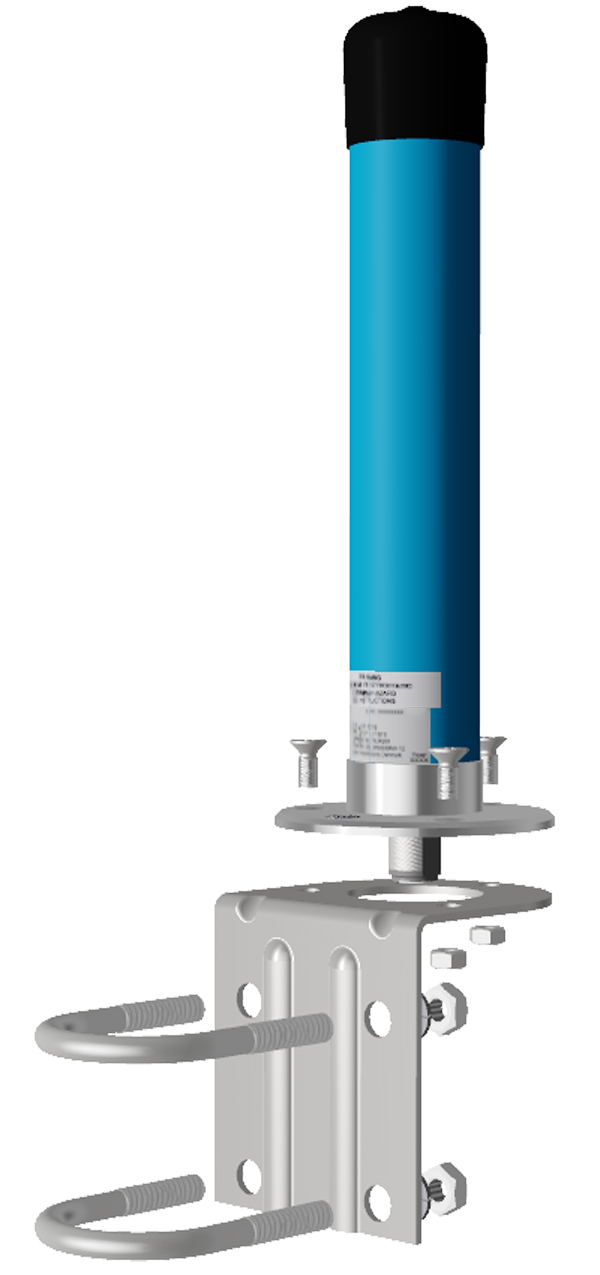

Assembly Drawing

GPS4 -Ex-beslag

Note

*See the ATEX Product Manual (safety and mounting instructions) and related EU DECLARATION OF CONFORMITY ATEX Directive 2014/34/EU.
