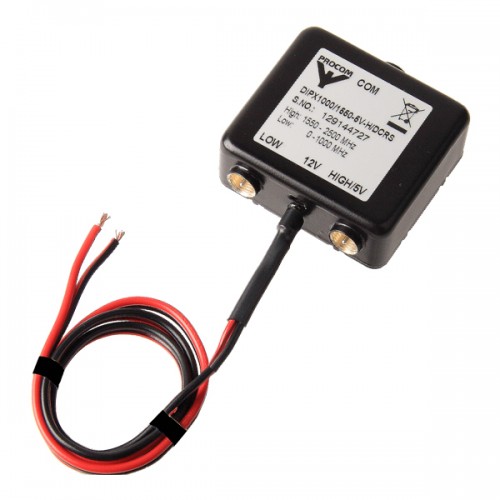

Diplex FiltersDIPX 1000/1550-5V-H/DCRS

Diplexer for the 0 - 1000 MHz and 1550 - 2500 MHz ranges with built-in GPS antenna power supply

Description

Diplexer for splitting a combined GPS and TETRA radio signal or combining a GPS and a TETRA radio signal on a common line.
Allows you to connect a separate TETRA antenna and a GPS antenna to a common radio port.
5V DC power supply on the HIGH port to supply power to an active GPS antenna.
Built-in 12V to 5V converter.
Extremely low RF insertion loss.
High isolation between the two antenna ports.
Wide-band coverage on the antenna ports:
- LOW (radio): 0 - 1000 MHz.
- HIGH (GPS): 1550 - 2500 MHz.
FME-male RF connectors.
12 V DC connection with 1m red/black two-wire cable.
Easy installation with the mounted double-sided adhesive pad.

Specifications

Electrical

Model

DIPX 1000/1550-5V-H/DCRS

Frequency

Low port : 0 - 1000 MHz
High port : 1550 - 2500 MHz

Max. Input Power

15 W each port

Insertion Loss

0 - 1000 MHz : = 0.8 dB
1550 - 2500 MHz: = 1.0 dB

Impedance

50 Ω

DC Input Voltage on DC Cable

8 - 14 V

Isolation

Low to high port: = 45 dB

DC Voltage on High Port

5 V

Max. DC-Current High Port

200 mA

Mechanical

Connection(s)

LOW : FME(m)
HIGH : FME(m)
COM: FME(m)
DC cable: red (+) / black (-)

Dimensions

50 x 21 x 50 mm / 1.97 x 0.83 x 1.97 in.

Weight

Approx. 0.075 kg / 0.17 lb.

DC Cable

Fixed 1 m / 40 in. dual wire red / black

Environmental

Operating temperature range

-30°C to +70°C

Diagram and Mounting

TYPICAL RESPONSE CURVES FOR 1 dB

TYPICAL RESPONSE CURVES FOR 10 dB

CABLE MOUNTING

Ordering Designations

Model	Product No.
DIPX 1000/1550-5V-H/DCRS	200002551

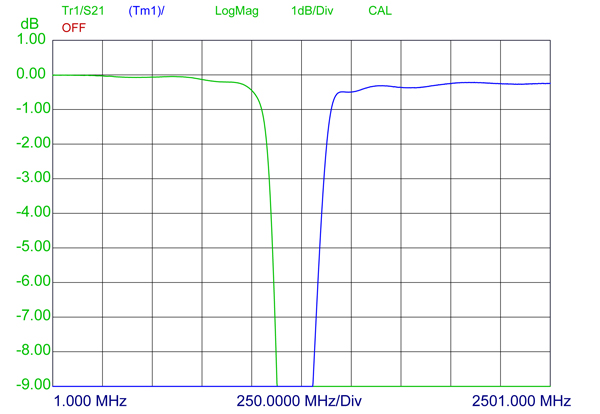

Typical Response Curves - 1 dB

DIPX 1000 1550 5V H DCRS kurve 1dB

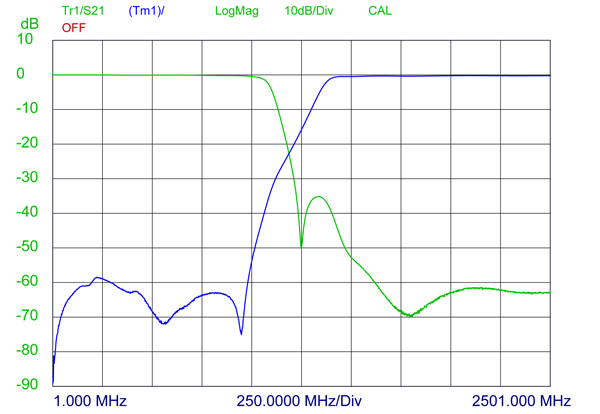

Typical Response Curves - 10 dB

DIPX 1000 1550 5V H DCRS kurve 10dB

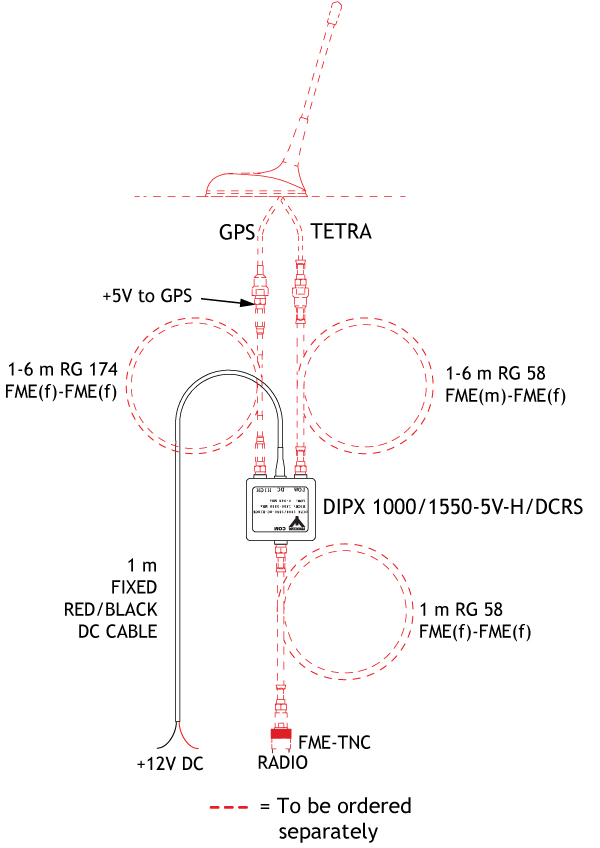

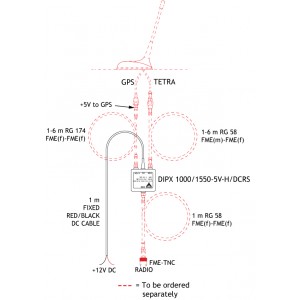

Cable Mounting

DIPX 1000 1550 5V H DCRS detail GB
