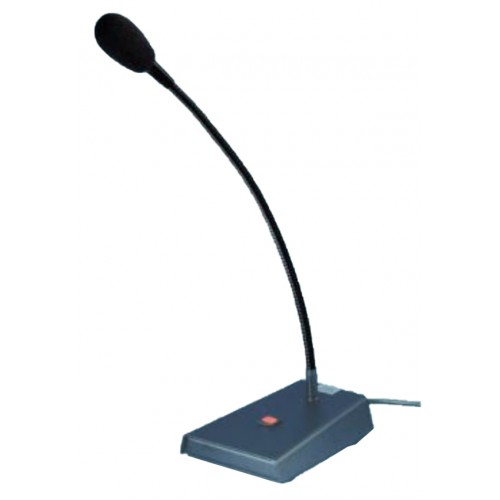

DM 6500 F/P

DanmikeDM 6500 F/P

Desk Microphone with Goose Neck

Description

  • Base station desk microphone with goose neck.
  • Attractive design.
  • High-sensitivity electret cartridge with amplifier.
  • PTT switch.
  • Special command board switching arrangements may be quoted upon request.

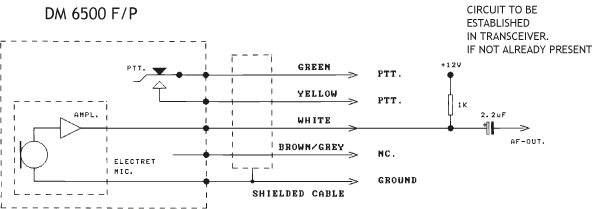

  • Voltage supply 9 - 15 V DC when connected as shown in the diagram below.
  • Supplied with 2 m cable.
  • Wind cap.

Specifications

Electrical
Model DM 6500 F/P
Type Goose neck microphone
Pattern Type Uni-directional
Impedance Approx. 1 kΩ

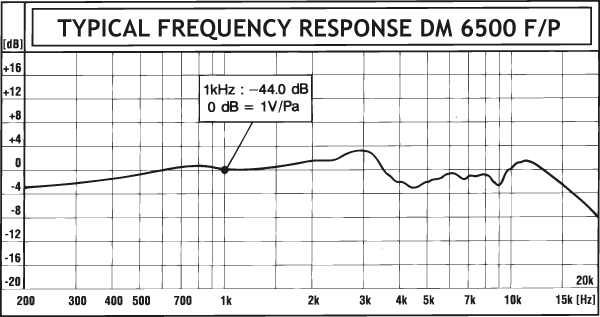

Frequency Response Shown in diagram below
Power Supply Nominal : 2 V (Max. 10 V) directly on cartridge
Current Consumption Approx. 0.5 mA
Sensitivity -44 dB ± 3 dB at 1 kHz rel. 1 V/Pa
Mechanical
Cartridge Type Electret
Materials Brass and steel, epoxy lacquered.
Impact-proof plastic
Cable 2 m 5-wire with shield
Dimensions 400 (typ.) x 108 x 145 mm / 15.75 (typ.) x 4.25 x 5.71 in.
Weight Approx. 0.95 kg / 2.09 lb.
Environmental
Operating temperature range -25 °C to +55 °C
Storage temperature range -40 °C to +55 °C

Ordering Designations

Model Product No.
DM 6500 F/P 270000039

Additional Data
